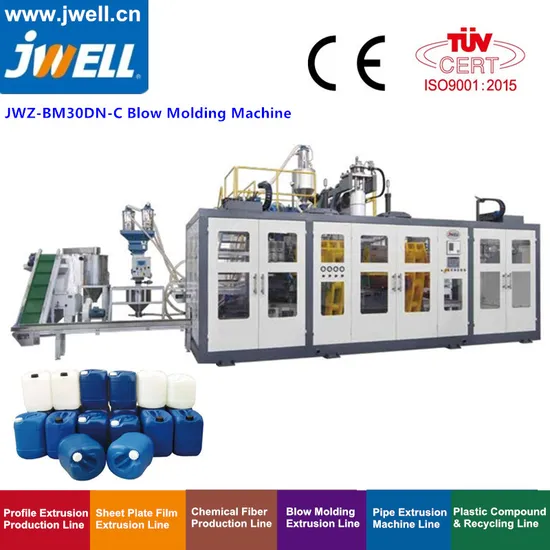

HDPE 15-30L Plastic Jerrycan Making on Extrusion Blow Molding Machine/Packaging Machine Made in China

Product Description

Performance and advantages ·Suitable for producing 15-30L different size Chemical packaging jerrycan. ·Adopt continuous type die head, up-blowing structure, convenient for product auto-deflating on-line, scrap conveying on line, finished product leak testing on line, conveying, packing, etc. Reducing the working cost and increasing the production ratio. ·Adopt toggle type platen structure, have the advantages of uniform-clamping, big clamp force, assembling largemold, easier dismounting& assembling the mold. ·Optional double layer co-extrusion system. ·Optional view strip line system. ·Optional hydraulic servo control system.
Technical parameters

Model	Unit	BM30DN-C
Max product volume	L	30
Dry cycle	Pc/h	450*2
Die head structure	Continuous type
Main screw diameter	mm	100
Max plasticizing capacity (PE)	kg/h	190
Driving motor	Kw	55
Oil pump motor power	Kw	18.5
Clamping force	KN	300
Space between platen	mm	340-860
Platen size W*H	mm	580*600
Max. mold size	mm	500*600
Platen moving stroke	mm	800
Heating power of die head	Kw	20
Machine dimension L*W*H	m	5.6*4.8*4.5
Machine weight	T	18
Total power	Kw	125

Note: Information listed above are for reference only, the production
line can be designed by customer's requirements.
Control system
Control system
SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Hydrulic system
Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
Open&Closing system
Common three platen and three tie bar struction
Toggle struction
Lubrication system
This auto-lubrication system can lubricate the system with a set cycle automatically.
Electric system SIEMENS CPU unit SIEMENS temperature-control unit SIEMENS digital-output unit SIEMENS analog-output unit MITSUBISHI CPU unit JWELL invertor revolving speed-control Schneider electric components

---
