China Static Mixer Manufacturers Epoxy Static Mixer Machine

Product Description

Multicolor Silicone Sealant Auto Metering Static Mixer
Product Description This static mixer is a kind of silicone sealant,adhesive and paste making equipment,it could synchronously extrudes and cross-dispersions the color paste and the base material according to their volume proportion to achieve the mixing effect. Version static mixers could be inline with sealant filling machine from starting a flow rate of 5-6 liters/minute, up to even 50 liters/minutes for filling in commercial 200 liters drums/barrels based on its products production capacity up to 2 T/H to achieve.
This chemical static mixer consists of static mixer pipes, hydropneumatic, control making system, measuring system, color paste auxiliary feeding system, auxiliary flow monitoring system, material circulation,ring system, frame and other parts. The static mixing machine is particularly suitable for the requirements of the silicone sealant industry,because it can realize automatic metering, automatic feeding, synchronous discharge.
The advanced liquid flow meter of static mixer machine could monitor to continuous automatically producing to ensure product stability to reduce labor and base material waste based on its high cost performance design.
Our Advantages 1. Auxiliary flow monitoring accuracy: ±3‰ in our static mixer
2. Auto pressure detection in mixed pipeline;
3. Auto detect whether there is air in the material;
4. Color paste/auxiliary automatic feeding system (Option: we could provide if customer need it);

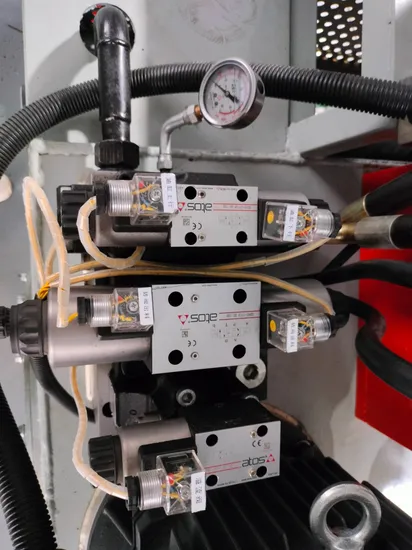

5. 1 set of hydraulic system, stroke extrusion for base material is 170mm.
6.3 Set of independent servo metering system, volume proportion adjustable range: 5‰ -8%
7. Fault alarm and prompt system
8. Heating system in the sealant pipeline
Product Parameters

Source supply	Three-phase AC 380V/50Hz
Power	Total power ofthe host system 36kW.(This is full load power.Actually less than 36KW)
Oil pressure system	Maximum design pressure of 15MPa
Design cap acity	1.5T-2.0T/ hour
Installation site size	L6000mmW3000mm*H2600mm
Quantitative range:	2L /once
Base material cylinder diameter	¢100 mm
Air pressure range	Above 0.6MPa
Motor pump set	Static 30KW motor, 71cc
Hydraulic pressure	Static working pressure 18MPa
System pressure	Static 21 MPa

Send us inquiry for price!!

---
