Corrugated Metal Sheet Roof Roll Forming Machine for 0.18mm Roofing Sheet

Product Description

Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing Sheet
Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing Sheet is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.18mm. We adopt wall board type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

1. Processing flow diagram of machine:
Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

2. Profile Drawings for Reference:
3. Technical parameters:

Manual decoiler
Capacity	5ton
Feeding width	MAX 1300mm
Expanding range	460-520mm

Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing Sheet
Main motor power	4kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	14-22 groups
Raw material	0.3-0.8mm
Coil width	1000-1200mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 5 ton
Size of machine	About 5500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel	touching screen
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

4. Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	1
2	Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing Sheet (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Character of main structure:
1. This machine contains our experiences in 30 years and many times improvements by our engineers.
2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.
3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.

6. Advantage: 1. We use Automatic control software to manage productive information.
2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.

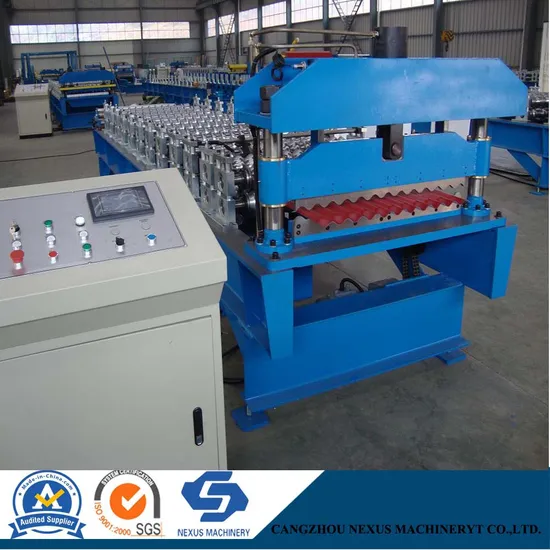

7. Photos of High Tensile Thin Barrel Tile Corrugated Sheet Panel Roll Forming Machine for Reference:
