Ca 6136 6140 6150 6161 6180 Horizontal Manual Desktop Thread Cutting Tools Conventional Lathe Machine Metal Pipe Threading Universal Lathe

Product Description

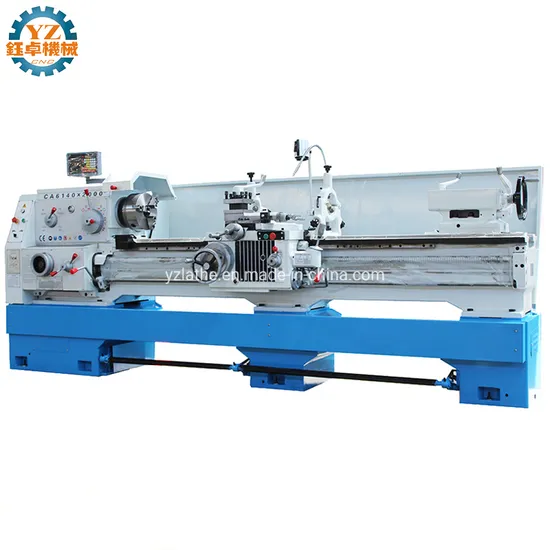

CA 6136 6140 6150 6161 6180Horizontal Conventional Lathe Machine And Universal Lathe
Specification

Model		CA6161	CA6261
Max. Swing over bed		610mm
Max. swing over carriage		370mm
Max. swing in gap		--------	830mm
Effective gap length		--------	210mm
Max. length of workpiece		750mm/ 1000mm/ 1500mm/ 2000mm/ 3000mm
Width of bed		400mm
Section of turning tool		25x25mm
Motor Power		7.5kw(10HP)
Spindle	Spindle speed	10-1400rpm/16-1400rpm (24 steps)
	Hole through spindle	52mm.(80mm).(105mm)
	Spindle taper	NO.6(MT6)( Φ90 1:20){ Φ113 1:20}
Feed	Number of feeds	64kinds for each
	Range of metric threads(kinds)	(1-192mm) 44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	0.25-48( Module 39 kinds)
	Range of pitch threads(kinds)	1-96DP(37 kinds)
Tailstock	Max. Tailstock travel	150mm
	Tailstock spindle diameter	75mm
	Taper of Tailstock	NO.5 (MT5)

Standard Configuration:
1.φ250mm jaw chuck and chuck holder;
2. Ground screw;
3. Wrenches and other tools.
Optional Configuration:
1. φ320mm jaw chuck and chuck holder;
2. Faceplate;
3. The events leading;
4. The center frame;
5. With the cutting tool.
Machine Detailed Photo
Company Information
Taian Yuzhuo Machinery Co., Ltd. ( or "YZ CNC" for short) is a professional manufacturing enterprise engaged in the
research, development, production, sale and service of CNC machines.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available
to discuss your requirements and ensure full customer satisfaction.
Our main products are as below:
* Wheel Repair CNC Lathe Machine
* Vertical CNC Lathe Machine
* Horizontal CNC Lathe Machine
* Slant Bed CNC Lathe Machine
* Universal Lathe Machine
* Pipe Threading CNC Lathe Machine
* CNC Milling Machine
* CNC Vertical Machining center
All the above products have passed CE, SGS certificates.
Our Strength
* Over 18 years manufacturing experience in CNC lathe machine.
* Quality is the life of our company, and we offer you the best high value added machines.
* Export CNC machine tools to all over the world, especially to UK, US, Europe and Middle East countries.
* Customer service is the power that drives our company forward.
CE Certifications
Foreign Customers
Contact Us
If any interest about our lathe machine, cnc milling machine or cnc vertical machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.

---
