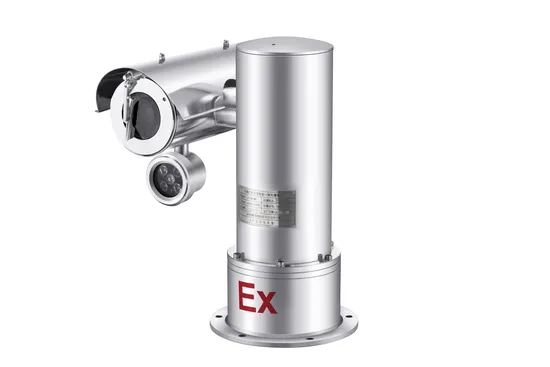

33X Optical Zoom Digital Zoom HD Infrared Explosion-Proof PTZ Integrated Camera

Product Description

[33x 3mp] Explosion-proof infrared HD PTZ integrated camera
HB-8003S -F6333
Functional Characteristics · ATEX IECEx double explosion-proof certification, explosion-proof mark: Ex db IIC T6 Gb / Ex tb IIC T80ºC Db,
· Uses a high-performance 3mp 1 / 2.8 " CMOS image sensor with high image definition
· 33 x optical zoom, focal length range: 4.5mm-148.5mm
· Starlight class low illumination monitoring, minimum illumination color 0.001lux (F1.5,50IRE), 0lux infrared light on
· Uses multi-angle fog surface / bright surface array infrared lamp, low heat energy, low power consumption, irradiation distance up to 100 meters
· Supports the detection and capture of faces in designated areas, and enables the statistics of the number of faces to achieve better control of people in and out
· Supports cross-border detection, regional invasion, entry / leaving areas, and can distinguish motor vehicles, non-motor vehicles and pedestrians to meet the needs of deployment prevention in complex scenarios
· 120dB wide dynamic, to meet the needs of high-contrast scene monitoring
· Supports 2304 * 1296@60fps, and the motion images are smoother
· Support H.265 Coding, 3D noise reduction, stabilization, fog transmission, ROI coding and focus, regional privacy occlusion
· 255 preset bits, power off memory, automatic cruise and other functions
· Horizontal direction 360° continuous rotation, vertical direction ± 90°, no monitoring blind area
· Supports AC100V ~240V wide voltage power supply, with optional DC24V 3A power supply
· Intelligent wiper function, wiper using car wiper blade, good weather resistance, easy to change
· Turbine worm transmission structure design, precision stepper motor drive, sensitive response, smooth operation
· Built-in semiconductor temperature-controlled components for automatic heating and heat dissipation
· The window adopts special explosion-proof glass, and the glass surface is treated by nanotechnology, with high optical pass rate, non-sticky water, non-sticky oil, and dust exclusion
· Is made of 304 stainless steel material, suitable for chemical industry, acid and alkali and other strong corrosive environment for use
Use Environment It is suitable for places with combustible gases of Class IIA, IIB and IIC, Zone 1 and Zone 2 with ignition temperature group T1-T6, and places where combustible gases or vapors form explosive mixtures with air.
It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture. Such as: petroleum, chemical industry, mine, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
Technical Parameters

	Explosion-proof Infrared HD PTZ Camera
Explosion-proof sign	Ex db IIC T6 Gb / Ex tb IIC T80ºC Db
Levels of protection	IP68
Imaging sensor	1 / 2.8 inch CMOS
Effective pixel	3MP
Focal distance / double	Focus length range: 4.5~148.5mm, 33 x optical doubling
Zoom mode	Electric zoom, automatic focus
Iris diaphragm	F1.5(W)~F4.0(T)
Shutter	Automatic / manual, shutter range: 1~1 / 100,000s
Minimal illumination	0.001lux (F1.5,50IRE, color); 0.0005lux (F1.5,50IRE, black and white); 0Lux (fill on)
Infrared distance	≥100 Meters
Day and night switching	Automatic infrared filter switching
Noise-signal ratio	>52dB
Wide dynamic range	120dB
3D noise reduction	Support
White balance	Automatic / Manual / Tracking / Outdoor / indoor / outdoor automatic / sodium lamp Automatic / sodium lamp
Electronic anti-shake	Support
Fog-through function	Support
Backlight compensation	Support
Strong light inhibition	Support
Coding protocol	H.265,H.264
Coding system	3MP (2304 * 1296) maximum of 60 frames/s
Main code flow	2304*1296,1920*1080,1280*720,720*576(D1),640*360
Auxiliary code flow	1280*720,720*576(D1),640*360
The third stream	720*576(D1),640*360,704*288(2CIF),352*288(CIF)
Video code rate	128Kbps~16Mbps
OSD	Time, change times, preset position, serial port OSD, azimuth information, number statistics, network port OSD, picture OSD, environment volume, latitude and longitude coordinates
Privacy cover	Black style: display up to 8 single scenes
Screenshot	Support timing grasp map, periodic grasp map, cruise preset bit grasp map
Audio encoding format	G.711u,G.711A,AAC-LC
Audio sampling rate	G.711u,G.711A:8KHz;AAC-LC:8KHz,16KHz,48KHz
Front end storage	Support for Micro SD storage, up to 256GB
Perimeter arming	Cross-boundary detection, regional invasion, entry area and leaving area; Support motor vehicles, non-motorized vehicles, pedestrians target classification detection capture and arming
Face detection	Up to 40 individual face targets can be detected simultaneously; Support effect first, speed first, cycle preferred three face capture preferred mode, support face Angle filtering
Common event	Motion detection, occlusion detection, sound detection, alarm input, alarm output
Networking protocol	L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS, NTP,FTP,UPnP,HTTP,SNMP,SIP
Compatibility	ONVIF2.4, GB / T28181, and Uniview Agreement
Browser	Support IE7 and above versions (including IE7) Google, Firefox, Apple and other non-IE visitors
Safe mode	Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist)
User management	Multi-level user rights management
Rotation range	Horizontal: 360° continuous rotation; vertical: ± 90°
Rotation speed	Horizontal: 0.1° -40° / s, vertical: 0.1° -40° / s
Preset point	255
Preposition accuracy	±0.1°
Automatic cruise	Four bars, each with 16 preset points that can be added
Watch function	Support
Double the speed limit	Support
Power memory	Support
Audio interface	1 In and 1 out
Alarm interface	1 In and 1 out
Network interface	Built-in RJ45 network port, support 10M / 100M network data
Temperature range	-40ºC~+60ºC
Power supply mode	AC100V ~ 240V / DC24V 3A (optional)
Product material	304 Stainless steel material (chemical, acid and other strong corrosive environment)
Inlet hole specification	1pc M25*1.5 inlet hole
Way to install	Multiple installation options are optional based on the application environment
Product weight	≤29kg

Product Size
