Product Details
Product Description
Product Description
SANDPIPER technology and quality has become the standard in the pneumatic diaphragm pump industry.Product features: safety explosion-proof gas source for power, will not produce sparks, thoroughly explosion-proof. The SandPIPER pump can be used in explosion-proof environment.
Good anticorrosion performance of the pump body material selection, according to the corrosion characteristics of the medium to choose the best material. Can be used in a variety of corrosive media.
No sealed design, no motor -- no leakage
Due to pneumatic and no seal design. No motor, no leakage, no environmental pollution.
Conveying wear media and shear media
Because of the low inner body flow rate, can transport high wear medium and shear medium, will not cause damage to the pump and medium.
Conveying viscous medium
Can transport medium with high viscosity or containing particles. Almost every medium from water to ketchup.
Completely imbibition
SandPIPER ⅱ pump does not need irrigation pump under conventional conditions, completely self-priming.
Traffic is adjustable
Only need to control the air source, can make the pump flow from zero to the maximum arbitrary change.
Not afraid of idling, not afraid of holding pressure
Compared with conventional pumps, SandPIPER pumps do not damage the pump body under any idling condition.
Multiple outlet connection modes
Can provide a variety of outlet, including: upper outlet, lower outlet, side and double outlet, etc.
Upper outlet - General purpose (not suitable for media with precipitating particles).
Lower outlet - for media with precipitating particles.
Side and double exits - special purpose.
Bypass and return valves are not required
When the outlet pressure equalizes with the driving pressure, the pump automatically stops, SO SIMPLY CLOSING the outlet and the pump STOPS, eliminating the need to INSTALL an EXPENSIVE bypass system.
No dead point guarantee
ESADS PLUS (external maintenance air valve system);
WARREN RUPP's patented design eliminates the need for lubrication, and repairs are performed from outside the pump body, resulting in significant savings in repair time and downtime, saving customers money and increasing productivity.

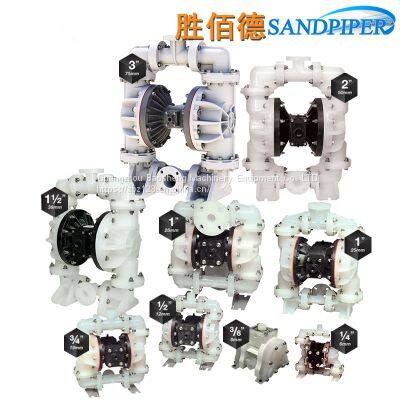

Plastic pump series
1/4 "plastic pump
Caliber: 10 1/4 "(thread) Flow rate: 0-15L/MIN 0-0.9m3 /H Head (height) : 0-6.9BAR 0-60m
Model specification material scope of application
Pb1/4, TS3PP polypropylene housing, SP diaphragm acid, alkali, water
Pb1/4, TT3PP polypropylene housing, Teflon diaphragm acid, alkali, water
Pb1/4, TT3K polyvinylidene difluoride PVDF shell, Teflon diaphragm solvent monomer, oily, acid, alkali
1/2 "plastic pump
Caliber: 15 1/2 "(thread) Flow rate: 0-52L/MIN 0-3.1m3 /H Head (height) : 0-6.9BAR 0-60m
Model specification material scope of application
S05B2P1TPBS000 polypropylene housing, SP diaphragm acid, alkali, water
S05B2P2TPBS000 polypropylene housing, Teflon diaphragm acid, alkali, water
S05B2K2TPBS000 polyvinylidene difluoride PVDF housing, Teflon diaphragm solvent monomer, oily, acid, alkali
1 "plastic pump
Diameter: 25 1 "(flange) Flow: small flow: 0-87L/MIN 0-5.2m3 /H (large flow: 0-170L/MIN 0-10.2m3 /H)
Head (height) : 0-6.9BAR 0-60 m
Model specification material scope of application
S10B1P1PPAS000 polypropylene housing, SP diaphragm acid, alkali, water
S10B1P2PPAS000 polypropylene housing, Teflon diaphragm acid, alkali, water
S1FB3P1PPUS000 polypropylene housing, SP diaphragm acid, alkali, water
S1FB3P2PPUS000 polypropylene housing, Teflon diaphragm acid, alkali, water
S1FB3K2KPUS000 polyvinylidene difluoride PVDF housing, Teflon diaphragm solvent monomer, oily, acid, alkali
1-1/2 "plastic pump
Caliber: 40 1-1/2 "(flange) Flow rate: 0-340L/MIN 0-20.4m3 /H Head (height) : 0-6.9BAR 0-60m
Model specification material scope of application
S15B3P1PPAS000 polypropylene housing, SP diaphragm acid, alkali, water
S15B3P2PPAS000 polypropylene housing, Teflon diaphragm acid, alkali, water
2 "plastic pump
Caliber: 50 2 "(French) Flow: 0-567L/MIN 0-34m3 /H Head (height) : 0-6.9BAR 0-60 m
specifications
Quality scope of application
S20B3P2PPUS000 polypropylene housing, Teflon diaphragm acid, alkali, water
3 "plastic pump
Caliber: 80 3 "(flange) Flow: 0-901L/MIN 0-54m3 /H Head (height) : 0-6.9BAR 0-60 m
Model specification material scope of application
S30B2P1PQAS000 polypropylene housing, SP diaphragm acid, alkali, water
S30B2P2PQAS000 polypropylene housing, Teflon diaphragm acid, alkali, water
>>
