| US$22,000.00-26,000.00 | 1 Piece (MOQ) |

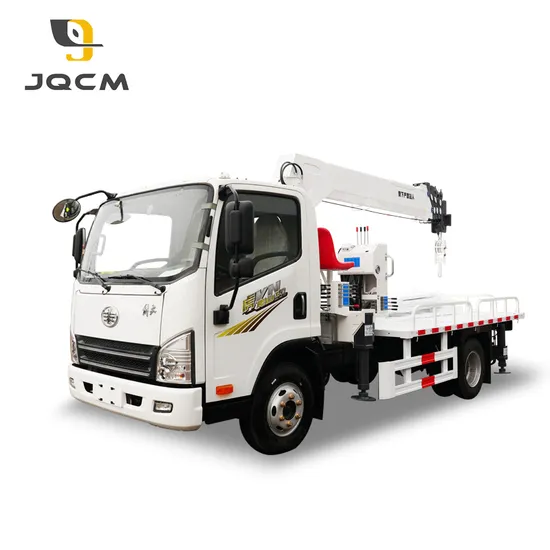

| The National VI standard crane is flexible in the city and is suitable for rural and urban construction, water conservancy project construction, etc. In terms of cargo loading and unloading, it can lift equipment, steel and other heavy items, improve loading and unloading efficiency, and reduce labor costs and safety risks. In terms of construction, it can be used to lift building materials, equipment and machinery, and complete tasks such as high-altitude operations. | |||
| Note: Before use, it is necessary to ensure that the outrigger cylinder is fully opened and the outrigger is locked. The outrigger cylinder is on the ground and the vehicle cannot be suspended. Before connecting the power take-off, check whether the control handle is in the middle position. If the handle is not in the middle position, restore it to the middle position. Check whether the shut-off valve on the hydraulic oil tank is open, and check the oil level in the tank. The liquid level is between the highest and lowest marks. Ensure that the vehicle has enough fuel to avoid power interruption during work, and check whether the battery pack is normal. Before use, it is necessary to check whether the safety device can work properly to ensure the life safety of the operator. | |||
| Brand | JQCM | Steering | Power steering |
| Chassis model | Foton (optional) | Engine model | Weichai 190HP (optional) |
| Vehicle dimensions | 8235*2550*3700mm | Basic arm length | 3.98-12.9 meters |
| Emission standards | National VI | Maximum lifting torque | 15.75T*M |
| Wheelbase | 4500mm | Maximum lifting weight | 6300KG |
| Gross mass | 16000KG | Maximum speed | 90km/h |
| Curb weight | 8600KG | Outrigger span | 5.3M |
| Rated load | 7205KG | Rotation angle | 360 degree full rotation |
| Gearbox model | Fast 8-speed high and low gear | Maximum lifting height | 14.6m |
| Axle load | Front axle 4.5T rear axle 10T | Maximum elevation angle | 0-80 degrees |
| Throttle | Rear remote throttle | Jib | 3.8 meters 4 sections |
| Refrigeration system | Air conditioning | Chassis | Optional |
| Boom extension | Return rod rope | Accessories | Can be installed |
| Hydraulic outriggers | Automatic (rear outrigger optional) | ||
