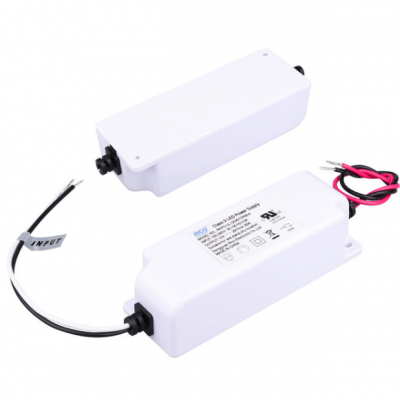

72w 32vdc Rcm Mark Ip68 Waterproof power supply
Key Specifications/Special Features:
35W 12VDC 2917mA LED Power Supply IP20 IP68 waterproof for Garden lights BBQ
Model No.: RKPO-UL1202917IP68-4
Key Specifications: Input voltage: 100-240VAC
Input frequency: 50/60Hz
Input current: 0.9A
Input with NEMA 1-15P or NEMA 5-15P / SJTW 2 or 3 X18AWG
Efficiency: more than 80%
Output voltage: 12VDC
Output current: 2917mA
Output power: 35W
Output with SJTW 2x0.824mm² output wire directly
File No.: E467791
No load power consumptions: less than 0.1W
With 2-4 hours full load aging test and 100% hi-pot test
Operating temperature: -30 to 60 ℃
Storage temperature: -40 to 80℃
Humidity range: 35 to 80% RH
Constant voltage precision: ±5%
MTBF: ≥60000 hours at 25℃
Dimansions: 140x50x36mm
Weights: 0.55kg
Special Features: Universal AC input/full range
Certificates: UL/CUL
Efficiency standard: VI, DOE, NRCan, ERP, CEC, CoC V5 Tier2
Protections: SCP, OVP, OCP and OTP
High reliability and light weight
Low working temperatures
Low noise, energy saving and eco-friendly
Fire-proof plastic case and cooling by free air convection
Compact size and low cost
Low ripple design
2 years warranty
Custom: OEM/ODM orders are accepted
Applications: Outdoor lighting
Home appliance
BBQ lighting
Garden lighting
Waterpump
Input voltage: 100-240VAC
Input frequency: 50/60Hz
Input current: 0.9A
Input with NEMA 1-15P or NEMA 5-15P / SJTW 2 or 3 X18AWG
Efficiency: more than 80%
Output voltage: 12VDC
Output current: 2917mA
Output power: 35W
Output with SJTW 2x0.824mm² output wire directly
File No.: E467791
Dimansions: 140x50x36mm
Weights: 0.55kg
