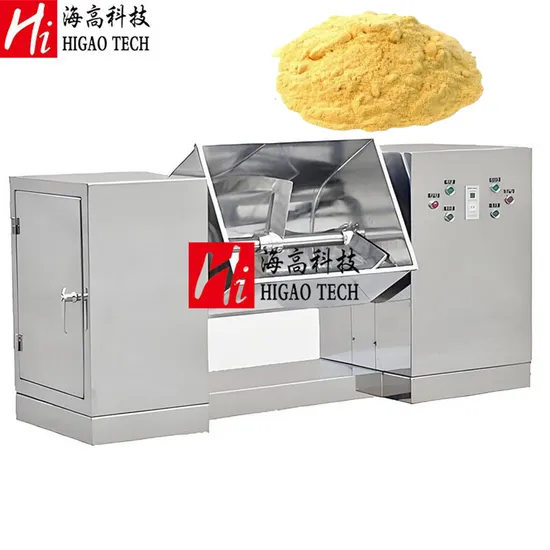

Stainless Steel Blender Horizontal Fully Automatic Z Blade Sigma Mixer for Dough Powder Kneader Machine

Product Description

Product Description
Single shaft sigma blade mixer machine is especially used to mix paste materials, mix powder, granules, particles in pharmaceutical, foodstuff, chemical fields. such as flour, dough, soap, etc.
Working principle and features:
Single shaft sigma blade mixer machine can reach good mixing effect by mechanical driving to push the material to move to and from inside the kneading machine.
You can control the mixing time by setting the time relay between 0~999 minutes on the dough kneading mixer, the sigma blade mixer machine will stop automatically when time is up.
Then you can adjust the tank to rotate till its reaching a proper position and push the output button to make the Z or sigma shaped blade blender reverse to discharge the materials automatically.

(DSM Series) Twin Shaft Sigma Blade Kneader Mixer of HIGAO TECH
Model	Total volume	Loading capacity	Agitating motor	Agitators speed	Steam heating pressure	Electric heating power	Vacuumized type Vacuum degree	Pressure type Pressure	Dimension(L×W×H)	Weight
DSM-5	5L	~3kg	0.75kw	33rpm+23rpm	0.3Mpa	1kw	-0.094Mpa	0.45Mpa	650×400×700mm	300kg
DSM-10	10L	~6kg	1.1kw	33rpm+23rpm	0.3Mpa	1kw	-0.094Mpa	0.45Mpa	750×450×900mm	400kg
DSM-50	50L	~30kg	2.2~3kw	45rpm+23rpm	0.3Mpa	4kw	-0.094Mpa	0.45Mpa	1170×1100×500mm	550kg
DSM-100	100L	~60kg	3~7.5kw	35rpm+22rpm	0.3Mpa	4kw	-0.094Mpa	0.45Mpa	1650×780×1550mm	1200kg
DSM-200	200L	~120kg	7.5~15kw	35rpm+22rpm	0.3Mpa	6kw	-0.094Mpa	0.45Mpa	1700×770×1600mm	1400kg
DSM-300	300L	~180kg	11~30kw	37rpm+21rpm	0.3Mpa	9kw	-0.094Mpa	0.45Mpa	1800×800×1400mm	1600kg
DSM-500	500L	~300kg	15~37kw	37rpm+21rpm	0.3Mpa	16.2kw	-0.094Mpa	0.35Mpa	3000×1000×1500mm	3000kg
DSM-1000	1000L	~600kg	22~90kw	35rpm+25rpm	0.3Mpa	27kw	-0.094Mpa	0.35Mpa	3450×1300×1600mm	4000kg
DSM-1500	1500L	~900kg	22~90kw	30rpm+16rpm	0.3Mpa	32.4kw	-0.094Mpa	0.35Mpa	3600×1450×1800mm	5500kg
DSM-2000	2000L	~1200kg	30~110kw	30rpm+16rpm	0.3Mpa	40kw	-0.094Mpa	0.35Mpa	3900×1600×2100mm	6500kg

Related Products Click on this link to view more products.
Application
Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
