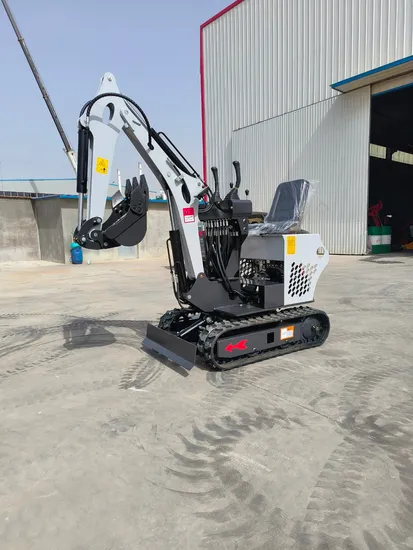

Made in China (HQ07) with CE, EPA 4 Engine Mini Milk Excavator

Product Description

1, Features :
This HQ07 min excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.
2, Specifications :

Operating Weight	750kg
Digging bucket capacity	0.02cbm/100kg
Digging bucket width	300mm, can add narrow bucket is 200mm
Engine	YOUPU or KUBOTA , EURO 5 OR EPA 4 engine
Rated power	7.5KW
Displacement	0.210 L
MAIN DEMENSIONS
Overall dimension( LxWxH)	2800x960x1500 mm
Total length of track on land	1090mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	946 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	300 mm
OPERATING RANGE
Max. Digging depth	1150 mm
Max. Digging height	1890 mm
Max. Dumping height	1650 mm
Min. Rotation radius	1090 mm

Operating Weight	750kg
Digging bucket capacity	0.02cbm/100kg
Digging bucket width	300mm, can add narrow bucket is 200mm
Engine	YOUPU or KUBOTA , EURO 5 OR EPA 4 engine
Rated power	7.5KW
Displacement	0.210 L

3, Advantages introduction :
4, Professional Loading and Packing
5, Exhibitions of HaiqinTop Machinery
6, Certificate of HaiqinTop Machinery
7, MORE PRODUCT CATEGORIES OF HAIQIN-TOP MACHINERY
8, Warranty and Service.
HAIQIN-TOP loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem (except
easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN-TOP, and then better after-service will be guaranteed.

Contact us right now for more information! Online 24 hours a day!
