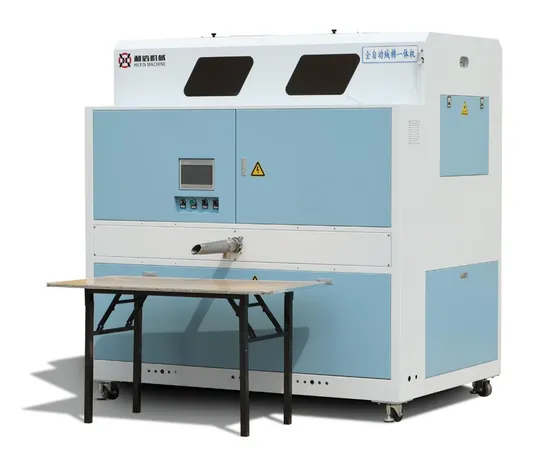

Single Head Automatic High Performance Cotton Filling and Weighing Machine

Product Description

One Head Four Scales Automatic Cotton Filling Machine(down also can be also filled)
Product Parameters

Model	M1-4
Single Error	Within 0.5g
Filling nozzle size	Weighing nozzle 32mm, 45mm Flow nozzle 25mm
Daily workload	5000-9000 times
Filling type	Whole piece filling
Single weighing range	3-200g
Filling material	Silk cotton, ball cotton, down, wool silk
Dimension(mm)	1800*1200*1900
Installation Size(mm)	3000*2500
Cycle number of single head	4
Display Accuracy	0.1g
Machine weight	450kg
Power	380V/4KW
Filling port	1weighing nozzle+2 flow nozzle

Electrical parts

Name	Brand and Origin
PLC	Delta/Xinje
Sensor	HBM(Germany)
Regulated power supply	MW(Taiwan)
Controller	Delixi
Pneumatic parts	AirTAC
Pressure Regulating Valve	Japan SMC/AirTAC
Touch Screen	MCGS

Our Advantages
Company Profile Our company is a national high-tech enterprise and has its own invention patents and multiple software works. The company has its own registered trademark and export authority, and has passed the international European Union CE certification.
Enterprise Vision: Technology Hexin Serving the World
Enterprise Spirit: Innovation for Practicality
Business philosophy: High efficiency and energy saving, create more value for customers.

FAQ FAQ Q: Are you a trading company or manufacturer ? A1: Tangshan Hexin Garment Machinery Co., Ltd. is a professional manufacturer with many years'experience.Q: What's your payment terms?
A2: We accept T/T, L/C
Q: What's the delivery time?
A3: 3~10 days. Q: Which payment period is accepted? A4:30% advance payment paid by T/T before fabrication and 70% balance payment paid by LC or TT before delivery.

---
