Rubber Sheet Cooler, Rubber Batch off Cooler

Product Description

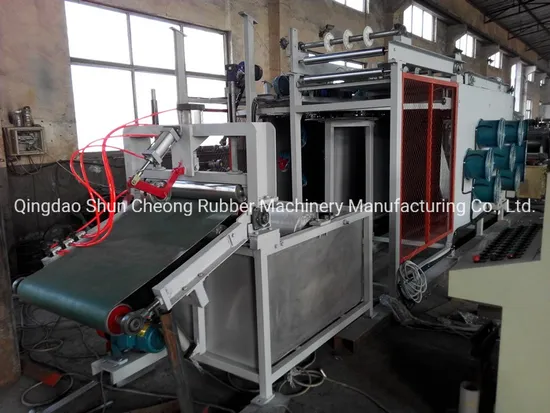

Rubber Sheet Cooling Machine, Rubber Sheet Batch off Cooler (XPG-700)
1. 20 years on rubber machine manufacturing and exporting.
2. Delivery within 35 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong.
This rubber sheet cooling machine can cooling the rubber sheets from high temperature to room temperature, and applicable to any kinds of rubber materials.
Characteristic:
1. The rubber sheet cooling machine take off adopts steel conveying rollers, equipped with printer and slitter. The take-off and lifting device are driven by a common AC inverter motor. The conveying speed ID adjustable.
2. There are two types of hanging bar driving devices. For XPG(III)-900, when the piston bars of two side oil cylinders extend, they push the hanging bar. The one way bearing keeps the hanging bar standing when the oil cylinder cylinder piston bar retracts, therefore the hanging bar carry out intermittent movement. Other one is driven by one AC inverter motor. The speed of hanging bar is synchronous with the take-off and lifting device.
3. The sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying.
4. The hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.
5. The robot in the take-off is advanced in China. The take-off can be controlled automatically.
6. A long tim is set for air cooling of rubber slabs so that the cooling effect is good.
7. The electric control system adopts a reliable and automatic PC.
NOTES:
1. The rubber sheet cooling machine can be designed as a flooring construction or an over-head construction. The sheet can be output on the first floor or on the second floor or both the first and the second floor.
2. The rubber sheet cooling machine is a combined construction. Customer can add or reduce the middle support as required.
3. Customer can select the transverse strip cutter and the strip slitter according to the processing requirements.
Details:

Model	XPG-600		XPW-600	XPG-800	XPG-900
Structure	Floor-standing type		Chain-Belt type	Overhead type	Overhea type
Max. Rubber Sheet Width (mm)	600		600	800	900
Rubber Sheet thickness (mm)	4-10		2-12	4-10	6-12
Temperature over room temperature after rubber sheet cooling (centigrade)	10		10	15	5
Linear Speed of taking-in conveyor (m/min)	3-24		3-24	3-35	4-40
Linear speed of sheet-hanging chain(m/min)	0.82		Chain-belt layer:5	0.117-1.17	4-40
Hanging height of the sheet hanging bar (m)	1000-1500		Net	1000-1500	1400
No. of cooling fans(set)	12			20	18-26
Total power (kw)	13.7			28.8	18-34
Overall Dimension(mm)	L	1425		16800	26630
	W	4500		4700	3500
	H	3405		3520	5630

---
