Customise Garmin Gpsmaps Chartplotter 23.8 Inch Full HD LCD Display with Wider Viewing Angles Touchscreen for Marine Machine

Product Description

Step into the future with our cutting-edge Optical Bonding 23.8-inch Touch Screen full view angle IP67 Industrial Touch Monitor, designed to meet the highest industry standards.
Main Products
Feedback
Product Description
Features:
1. Crafted with an Aluminum Alloy Face Frame, this monitor boasts a sandblasted oxidation process that provides superior anti-UV and anti-discoloration treatment, offering full IP67 waterproof protection.
2. Equipped with an Industrial LCD Panel, providing a remarkable full view angle for clear and precise display from any direction.
3. Featuring a 10-point PCAP Touch Panel, elegantly shielded with 2mm chemically strengthened tempered glass with an impressive 7H surface hardness. Experience a superior anti-glare surface treatment for seamless visibility in any lighting conditions.
4. Utilizing the EETI Waterproof Solution, our touch function remains highly effective, even when water droplets grace the screen.
5. Optional Optical Bonding between the Touch Screen and LCD enhances clarity and durability.
6. Built with robust industrial-grade components, this monitor supports relentless 7x24 continuous operation and wide temperature operation ranging from -20 °C to 70°C (-4°F to 158°F).
7. Ingeniously sealed with waterproof tape, both the front frame and rear shell ensure impeccable waterproof performance even after disassembly for inspection and maintenance.
Specification

LCD panel
Panel size	23.8"
Display active area	527.04(W)x296.46(H) mm / 20.75x11.672 in
Resolution	1920*1080
Aspect ratio	16:9
Brightness (cd/m²)	300 nits (1000 nits sunlight readable)
Brightness control	OSD
Contrast ratio	1000:1
View angle	89°/89°/89°/89° (R/L/U/D)
Support Color	16.7M
Backlight	WLED, 50K hours
Touch panel
Touchscreen Type	Projected Capacitive Touch (up to 10 points )
Surface Hardness	7H
Surface treatment	N/A (Anti glare (chemical etching) Optional)
Luminousness	≥85%
Touch controller IC	EETI 80
Available touch drivers	Windows, Linux, Android, Mac, etc
Touch bonding	Optical bonding/Air bonding optional
Touch optional	Resistive touch, IR touch, Non touch Optional

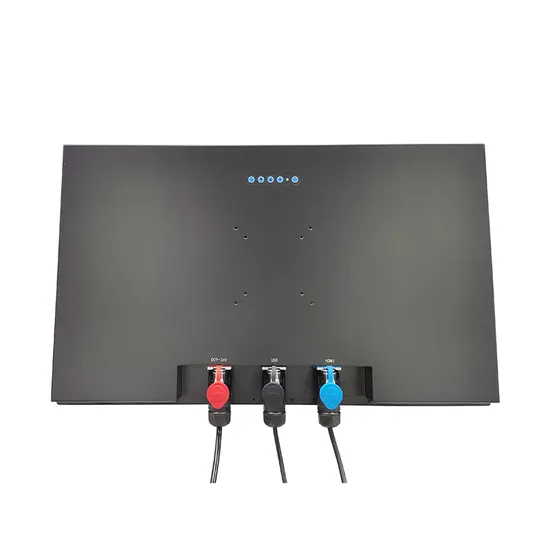

External I/O Ports
Video input	1×IP65 HDMII
Touchscreen interface	1*IP65 USB
Power connector	1*IP65 DC 9-36V
Power Supply
Working voltage	DC 9-36V
Power consumption	25W
Power adapter	AC 100 ~ 240V input and DC +12V@8A MAX output, 96W
OSD
Function Keys	5 Keys: Power/Menu/Up/Down/Return
Menu Functions	Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc.
Support languages	English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский
Enclosure
Material	Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing
Finish	Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated
Color	Black, Silver, White, others optional
Mounting	VESA mount 75x75/100x100mm
IP rating	Full IP67 waterproof
Cooling system	Passive - Fanless
Operating Environment
Temperature Range	Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F)
Relative humidity	Up to 100% at all relevant temperatures, non-condensing
Vibration	GB/T 2423.10-2019
Shock	GB2423.5
EMC	Class B
Packing Details
Net weight	Net weight 8.55kg
Product Dimension	600mm*368.3mm*60mm
Packing info	1pcs/ctn 75×19×52cm 12.5kg 2pcs/ctn 76×38×53cm 26kg
Accessories	Waterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable
Other
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

Customized
Certifications
Company Profile
FAQ
Sihovision is headquartered in China, spearheading global marketing initiatives. We are keen on forming long-term partnerships with local distributors. Feel free to reach out to us!

---
