Product Details
Product Description
Product Description
Product Description

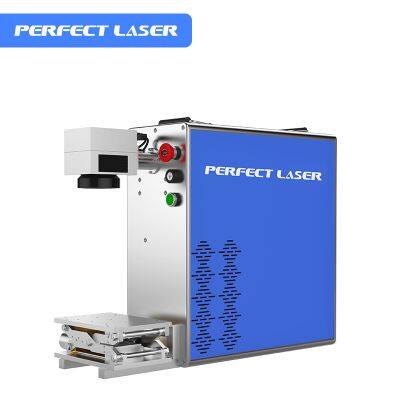

Perfect Laser is a world famous manufacturer and supplier of portable laser marking machine.
Perfect Laser adopts the most advanced international technology and the highest quality laser source, combined with German IPG fiber technology, and is committed to innovating a unique portable fiber laser marking machine. After an interview, this portable laser marking machine has won praise from customers both at home and abroad. Rated as "mobile portable laser marking machine". Its compact size and easy handling are the most praised advantages. It can meet the various needs of customers and is definitely a necessary model for portable fiber laser marking machine.
Product Features
1. Adopt fiber laser to output the laser, and the super high-speed scanning galvanometer system of this CNC laser marking machine is used to implement the marking function.
2. High photoelectric conversion rate.
3. The portable fiber laser marker adopts air-cooled cooling, which is better than water cooling.
4. Compact size, the CNC laser marking machine is easy to handle and install.
5. The output beam of the portable fiber laser marker has good quality and high reliability.
6. The marking depth of the portable fiber laser marking machine is up to 1mm.
7. 10 years of operating life, this energy-saving model CNC laser marking machine are more affordable.
8. The marking speed of the CNC laser marking machine is 3 to 12 times that of the traditional first-generation lamp-pumping marking machine and the second-generation semiconductor portable fiber laser marker.
9. No consumables, low power consumption, maintenance-free.
10. Permanent super clear mark, the portable laser marking machine has irreplaceable advantages.
Application
This portable fiber laser marking machine is widely used in Electronics and communication tools , IC chips, computer accessories and electrical appliances, all kinds of precise conponents, hardware tools, instrument and meter, aerospace devices, jewelry, clocks, gifts, office supplies, trademark signs, sanitary ware, table ware, food, beverages , tobacco and alcohol and many other industries for marking logos, symbols, words, and the portable fiber laser marker also can be used in production line for mass quantities work.
Technical Data
Model No
| PEDB-400A
| PEDB-400B
| PEDB-400C
| PEDB-400D
|
Type
| Portable
| Desktop
| Colorful
| Standby
|
Computer
| Not includes PC
| Includes PC
|
Laser Source
|
IPG Series
| Pulsed, High Energy Ytterbium Fiber Lasers
|
Mode of operation
| Pulsed
|
Polarization
| random
|
Nominal average output power
| 20W - 50W For PEDB-400A /400B /400C
20W - 100W For PEDB-400D
|
Central emission wavelength
| 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
Emission Bandwidth
(FWHM)
| <10 nm
|
Long-term average power instability
| <5%
|
Pulse width, (FWHM)
| 100 ns
|
Laser switching ON time
| 180 μsec
|
Laser switching OFF time
| 180 μsec
|
Pulse Repetition Rate* kHz
| 20-80 kHz
|
Energy per pulse (PRR = 20 kHz)
| 0.95 mJ
|
Typical beam quality, M2
| <1.8
|
Output fiber delivery length
| 3m
|
Operating voltage
| 220V
|
Max. Power consumption
| 600W
|
Net Dimensions
| 70*20*50cm
| 80*38*72cm
| 70*20*50cm
| 143*62*101cm
|
Net Weight
| 44 kgs
| 53 kgs
| 44 kgs
| 130 kgs
|
Gross Weight
| 60 kgs
| 70 kgs
| 60 kgs
| 200 kgs
|
Laser system
|
Scanning Speed
| 0-10000mm/s
|
Marking Speed
| 0-7000mm/s
|
Marking size
| 110mm×110mm (F-theta 160)
|
Spot size
| ≤ 40 micron (F-theta 160)
|
Cooling unit
| Air cooled
|
Pilot laser
| 650nm diode laser, visible red light for marking guide
|
Continuous working time
| ≥16h
|
Humidity
| 45～85% (no condensation)
|
Operating temperature
| 0~40℃
|
Control units
| Laser Mark (English Version)
|
>>
