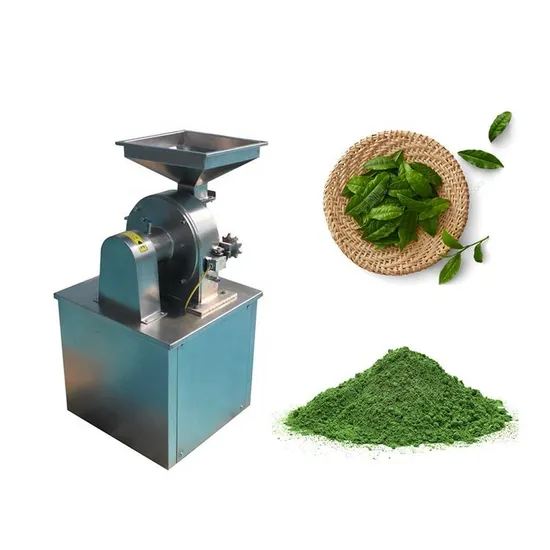

Commercial Powder Grinder Stainless Steel Universal Grinder

Product Description

Commercial powder grinder Stainless steel universal grinder
This machine is widely used in the crushing operation of a variety of small blocks, strips and granular materials with medium and low hardness in the pharmaceutical, food, chemical and other industries. The pulverization fineness can be adjusted freely between 12-120 meshes according to the screen and production requirements. This machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk, so that the crushed materials are crushed by the combined effects of toothed rod impact, friction and material collision. This machine has simple structure, scientific and reasonable design, sturdiness, stable operation and good crushing effect. The crushed materials can be directly discharged from the grinding cavity of the main machine. The particle size can be obtained by replacing mesh screens with different apertures. The inner wall of the casing is all machined to reach the surface. The smoothness has changed the phenomenon of rough inner wall and powder accumulation of the previous models, so that the production of medicine, food, chemical industry, etc., is well received and trusted by users in the pharmaceutical, food, chemical industry and other industries. Although the universal crusher is "omnipotent", it is not "invincible and invincible". It is mainly used for crushing materials with low hardness in the pharmaceutical, food, chemical and other industries. It can also be used for crushing medium and low hardness. The effect of non-metallic minerals is better.
Product Description
Features 1. Uniform fineness: can be sieved smoothly;
2. High output: customers need non-standard equipment that can be tailored to meet the requirements of high-yield customers;
3. Less restricted by the characteristics of the material: such as suitable for crushing various grains, sugar, medicinal materials, etc.;
4. Strong applicability: small test equipment can be configured with 220V voltage,
5. Crushing method: tooth disc, hammer type;
6. Material: all stainless steel, contact material stainless steel;
7. Operating system: common buttons, PLC touch screen;
8. Dust removal method: simple dust removal, pulse dust removal;
9. This machine is equipped with a water circulation jacket to reduce the temperature of the machine cavity.
Specification
working principle: This machine utilizes the high-speed relative movement between the movable toothed disk and the fixed toothed disk, so that the crushed objects can be crushed by the combined effects of tooth impact, friction and material impact. This machine is simple in structure, sturdy, stable in operation, and has good crushing effect. The crushed material can be directly discharged from the mill cavity of the main machine. The particle size can be obtained by changing mesh screens with different apertures. In addition, the machine is all stainless steel. The inner wall of the casing is all machined to achieve a smooth surface, which has changed the rough and dusty phenomenon of the inner wall of the previous model, and made the production of medicine, food, chemical industry, etc. Technical Paramers

Reyes Universal Crusher
Model	Res-20b	Res-30b	Res-40b	Res-60b
Capacity (kg/h)	20-150	30-300	40-800	60-1200
Speed of principal axis (r/min)	4500	3800	3400	2600
Size of input granules (mm)	<6	<10	<12	<15
Fineness of products (Mesh)	10-120	10-120	10-120	10-120
Power (kw)	4	7.5	11	22
Weight (kg)	200	320	550	960
Overall Size(L×W×H) mm	550*600*1250	750*600*1450	900*750*1650	1000*950*1800

Details
1.Install a limit switch for protection 2.Install water cooling device 3.Current display 4.Start up button 5.Stop button 6.Power Indicator 7.Emergency stop Output size of the particles can be obtained by changing different sieve, Also type of knife can be selected according to different materials.
Operation and precautions:
1. Before use, first check whether all fasteners of the machine are tightened and whether the belt is tensioned.
2. The rotation direction of the spindle must be in accordance with the direction of the arrow shown on the protective cover, otherwise it will damage the machine and may cause personal injury.
3. Check whether the electrical appliances are complete.
4. Check whether there are any hard objects such as metal in the crushing room of the machine, otherwise the cutters will be damaged and the operation of the machine will be affected.
5. The purity of the material must be checked before crushing, no metal hard debris is allowed to be mixed in, so as to avoid damage to the tool or cause burning and other accidents.
6. The oil cup on the machine should be filled with lubricating oil frequently to ensure the normal operation of the machine.
7. Stop feeding before shutting down. If you do not continue to use it, remove the residue in the machine.
8. Regularly check whether the cutter and the screen are damaged. If damaged, it should be replaced immediately.
9. The machine body will vibrate slightly when in use. Be sure to tighten the machine cover connection handle to avoid accidents.

---
