Basic Info.
Transmission Distance
50-100m
Product Name
F21-4D Industrial Remote Control
Enclosure Protection Class
IP65
Frequency Range
VHF: 310-331MHz; UHF: 425-446MHz
Receiver Sensitivity
-110dBm
Receiver Power Supply
18~65V AC/DC; 65~440V AC/DC (Optional)
Safety Code
32 Bits (4.3billion)
Temperature Range
-40ºC-+85ºC
Output Contactor Capacity
8A Sealed Relay Output (with AC 250V/10A Relays
Cable Length
1.65m (Other Length Can Be Customized)
Control Distance
100meter
Keyword
Chain Hoist Use Remote Control
Usage
Used for Controlling Tower Crane, Concrete Pumps..
Signal Transmission
Radio Waves
Transport Package
Standard Export Packing
Production Capacity
5000sets Per Month
Product Description
Product Description
Product specifications : Low-cost, low energy consumption , two alkaline batteries can be used 4 months , Buyers bring their own battery
Temperature Range:-40C-+80 C
Protection class:IP65
Material: fiberglass shell structure
Transmitted Power: <10 dBm Receiver sensitivity: 110dBm
Control distance: up to 100 meters Transmitter Power: DC 3V (2 alkaline AA batteries can be used 4 months)
Receiver Power Supply: AC 380V/220V or DC 24V/36V/48V this items without include battery , because airlines and airplane do not allow

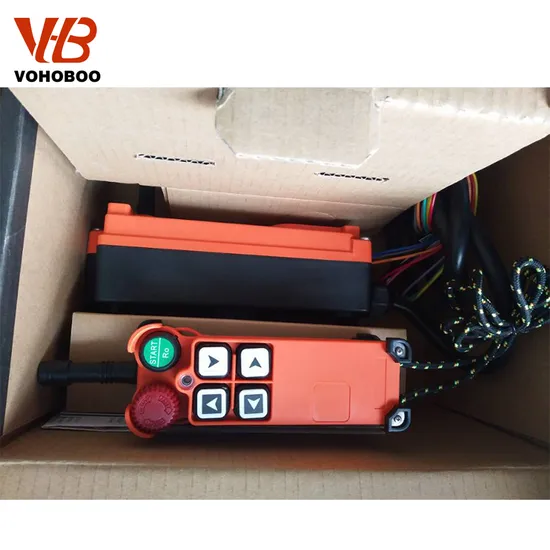

Standard configuration:
1. Transmitter x 1 piece
2. receivers x 1 piece
3 . The receiver comes with 1m cable connector
4 . Operation and Maintenance Manual Product Details
Product Advantages
Product Parameters
| F21-4D Transmitter Parameters |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310-331MHz (UHF: 425-446MHz is optional) |
| Transmitter power | ≤10dBm |
| Transmitter power supply | 2 AA alkaline batteries (not included) |
| Safety code | 32 bits (4.3billion) |
| Temperature range | -40ºC-+85ºC |
| Control distance | Approx 100m(200 meters is customized) |
| Size | 156x61x51mm |
| Weight | 255g (without battery) |
| F21-4D Receiver Parameters |
| Material | Glass-Fiber PA |
| Enclosure protection class | IP65 |
| Frequency range | VHF: 310-331MHz; UHF: 425-446MHz |
| Receiver sensitivity | -110dBm |
| Receiver power supply | 18~65V AC/DC; 65~440V AC/DC (optional) |
| Safety code | 32 bits (4.3billion) |
| Temperature range | -40ºC-+85ºC |
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) |
| Cable length | 1.65m (Other length can be customized) |
| Size | 205x86x80mm |
| Weight | 620g |
