Stainless Steel Wire Mesh Spl/Dpl 40 Filter Disc for Oil Lubrication

Product Description

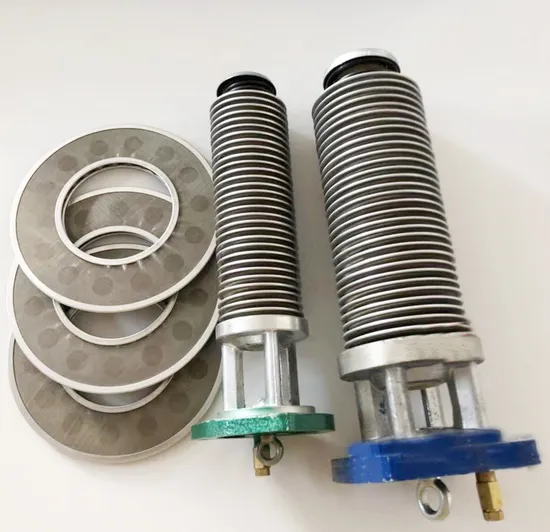

Stainless Steel Wire Mesh SPL/DPL 40 Filter Disc For Oil Lubrication
1. Production Name: SPL filter disc 2. Material: Stainless steel: 201, 202, 304, 304L, 316, 316L, 321 Copper: brass, copper, phosphor bronze
Nickel: Cr20Ni80, Nickel 200, Monel 400
Aluminum: pure aluminum, aluminum alloycustomized is accepted 3. Mesh Count: 20, 118, 202, 363 mesh, or as your requirement 4. Property: Large filtering area
High compressive strength
Resistant to high temperature
Resistant to harsh work conditions
Simple to install, dismantle and clean
Long service life Specification for SPL filter

Type	Nominal diameter (mm)	Rated flow (L/min)	Filter disc size (mm)
			ID	OD
SPL-15	15	2	20	40
SPL-25	25	5	30	65
SPL-32	32	8
SPL-40	40	12	45	90
SPL-50	50	6020	60	125
SPL-65	65	30
SPL-80	80	50	70	155
SPL-100	100	80
SPL-125	125	120	90	175
SPL-150	150	180
SPL-200	200	320

Application The SPL filters are commonly used as filter element for oil lubrication equipment, press filter equipment, diesel engine and other equipment. Which involved oil filter industry, such as raw oil, diesel oil, fuel oil, gasoline, kerosene, hydraulic oil, machine oil, lubricating oil, gear oil etc. It is also used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, paper making, spinning, food medicine metallurgy, machinery, ship, automobiles and environmental protection etc.

---
