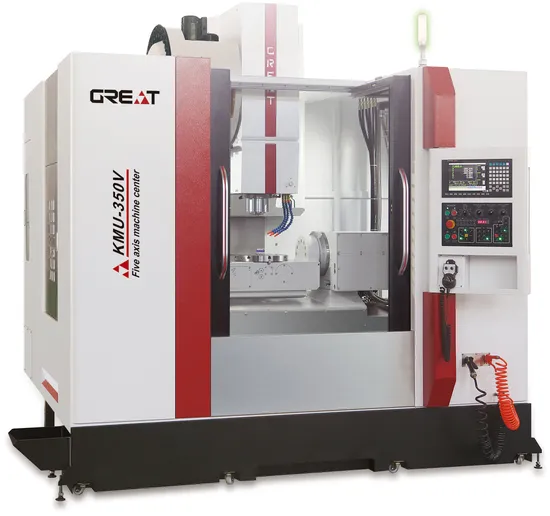

Kmu-350V 5 Axis Machining Center CNC Milling Machine

Product Description

KMU-350V 5 Axis Machining Center CNC Milling Machine Product Description
Mitsubishi system 12000rpm direct-connected spindle Spindle blower Chip flushing device Three-axis telescopic shield Fully enclosed shield Automatic lubrication system Work light Operation status indicator 24 tool arm type tool magazine Z Shaft pressure balance system (KMU-500) Cooling system Air gun, water gun Electronic hand wheel Electric box heat exchanger Rigid tapping Spindle oil temperature cooler Transformer Chain chip conveyor (KMU-170 Not equipped) Toolbox and tools Level adjustment screws and spacers Operation manual and procedure manual
Optional configuration:
New generation, Siemens, FANUC system Electric spindle 30, 40 tool magazines Chain type chip conveyor X/Y/Z axis optical ruler A/C axis optical ruler Water outlet at the center of the spindle Electric box Air conditioner Hollow screw Automatic tool length measuring device Automatic workpiece measuring device Oil-water separator Micro-lubrication cooling device Oil mist collecting device Water outlet from the center of the spindle Detailed Photos

Product Parameters

Items		Unit	KMU-170V	KMU-350V	KMU-500V
Work scope	X axis travel	mm	500	500	650
	(moving table left and right)
	Y-axis travel	mm	400	700	700
	(the worktable moves forward and backward)
	Z-axis travel	mm	500	650	650
	(headstock moves up and down)
	A	°	+30°/-120°	+30°/-120°	+42°/-120°
	C axis	°	360°	360°	360°
	Maximum rotation diameter	/	220	480	630
	Distance from spindle nose to table surface	mm	25-525	120-770	80-730
	(horizontal)
Disc workbench	Disk surface size	mm	Φ170	Φ350	Φ500
	Horizontal load of workbench	kg	70	200	200
	Tilting load of worktable	kg	45	150	100
	T-slot size	mm	12	8/12	8/12
Spindle	Spindle drive mode	/	Direct	Direct	Direct
	Spindle speed	rpm	12000	12000	12000
	Spindle taper	/	BT40	BT40	BT40
	Spindle power	/	7.5	11/15	11/15
Feed	Rapid feed rate(X/Y/Z)	m/min	36/36/30	36/36/30	36/36/30
	Cutting feed rate(X/Y/Z)	m/min	1/10	1/10	1/10
	Maximum disk speed(A/C)	rpm	20.0/27.8	13.3/22.2	16.7/11.1
Toolmagazine	Handle form	/	BT40	BT40	BT40
	Tool magazine capacity	pcs	20	24	24
	Maximum tool length	mm	300	350	350
	Maximum tool weight	kg	8	8	8
Other	Air pressure requirement	kg/cm2	6	6	6
	Machine weight	kg	4000	7000	9000

Company Profile
Ningbo GREAT Machine Tool Co., Ltd. is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.Our main products including: Vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines, etc.Our products are suitable for producing auto accessories, textile Accessories, digital products, medical instruments, mold manufacturing, aluminum casting and so on.We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. To ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teams maintain close contact with customers and provide technical support at any time if necessary.We adhere to the Diamond quality concep tand keep working on it to provide best products for each customer.

---
