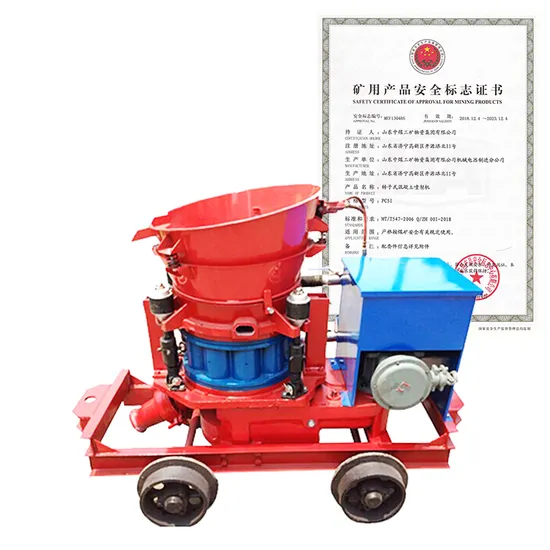

Pz-5 Dry Mix Concrete Shotcrete Machine on Sale

US$1,500.00-2,400.00 1 Piece (MOQ)

Basic Info.

Model NO.
pz-5
Machining Process
Mix
Structure
Rotor Type
Productivity
5m3
Feeding Height
20
Vibrating Amplitude
0.8
Certification
CE
Condition
New
Color
Orange
Price Terms
Fob
Minimum Order Quantity
1 Set
Supply Ability
1000 Sets Per Month
Place of Origin
China
Brand
China Coal
Keywords
Dry Shotcrete Machinery
Wheel
Nylon Wheel; Rubber Wheel; Skid Wheel;
Whole Weight
260kgs
Overall Dimension mm
1040X550X940
Transport Package
Wooden Case
Specification
5m3
Trademark
china coal
Origin
China
Production Capacity
1000 Sets Per Month

Product Description


Product Introduction Of Pz-5 Dry Mix Concrete Shotcrete Machine On Sale
1, Advantages: This is a high-effective shotcrete machine, which is mainly used for dry-mix, damp-mix shotcreting and steel fiber reinforced shotcreting.
2, Non-adhesion going through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
3, Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
4, Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Main Parameter Of Pz-5 Dry Mix Concrete Shotcrete Machine On Sale
Model PZ-3 PZ-5 PZ-7 HSP-5 HSP-7 HSP-9
Output 3.5m3/h 5m3/h 7m3/h 4.0-5.0m3/h 5.0-7.0m3/h 6.0-9.0m3/h
Max. Convey distance Horizontal 200m 200m 200m 30-50m 30-50m 30-50m
Vertical 20m 20m 20m 20m 20m 20m
Water cement ratio ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
Max. Aggregate. size Φ20mm Φ20mm Φ20mm Φ15mm Φ15mm Φ15mm
Hose inner size Φ38mm Φ51.mm Φ64mm Φ51mm Φ51/64mm Φ51/64mm
Operating air pressure 0.4~0.6MPa 0.4~0.6MPa 0.4~0.6MPa 0.3-0.6Mpa 0.3-0.6Mpa 0.3-0.6Mpa
Air consumption 3-4 m3/min 7-8 m3/min 12-15 m3/min 10.0-15.0m3/min 10.0-15.0m3/min 10.0-15.0m3/min
Rotor diameter 350(150)mm 438mm 480mm 438mm 480(160)mm 480(175)mm
Voltage 380v or as your requirement 380v or as your requirement 380v or as your requirement 380v or as your need 380v or as your need 380v or as your need
Overall dimension mm 1040*550*940 1280*700*1280 1600*700*1150 1280*700*1280 2000*800*1300 2000*800*1300
Whole weight 550kgs 600kgs 900kgs 700kg 800kg 900kg
