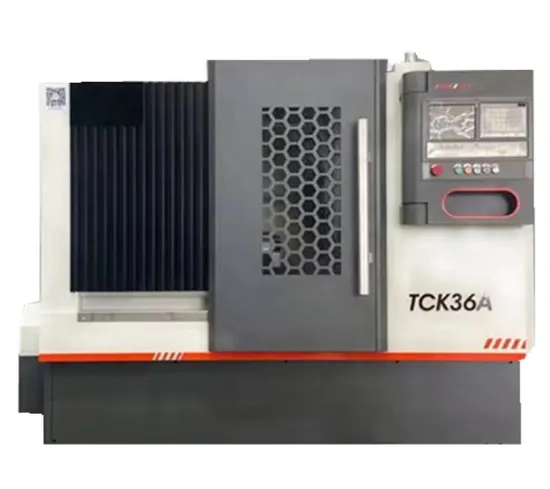

China Cheap Tck36A/46A/50A Multi-Axis Automatic and Semi-Automatic CNC Lathe Machine

Product Description

Product Description

Prodct Details
Main feature
This China slant bed and linear guide CNC lathe machine is applicable to automobile, motorcycle, electronics, aerospace, oil and other industry. This China slant bed and linear guide CNC lathe machine could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk. 1. 45 degrees slant bed CNC lathe machine. 2. Higher accuracy Taiwan linear guide. 3. Chip conveying capacity is large and convenient, customer could choose. 4. Chip conveying in the front or in the back. 5. X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure. 6. Gang type tool post. 7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds. 8. Use advanced centralized lubrication system uses. 9. Machine with full protection design,waterproof debris reliable, easy maintenance.
Specification

MODEL				TCK36A
Max swing over bed			mm	φ360
Max swing over cross slide			mm	φ140
Distance between centers			mm	300
Max turning length			mm	300
Screw specifications	X			2510
	Z			3210
Spindle hole			mm	φ48
Bar capacity			mm	φ41
Spindle nose				A2-5
Spindle speed			rpm	4000
Tailstock diameter			mm	φ65
Tailstock taper			No	MT4
Tailstock travel			mm	200
Electric turret type			station	8
motor torque		X	N.M	6
		Z	N.M	6
X travel			mm	170
Z travel			mm	350
Minimum setting unit			mm	0.01
Main motor			KW	5.5
weight			Kg	2400
dimension			mm	2200x1600x1850

Packing and Delivery
Company profile
Why choose us?
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
