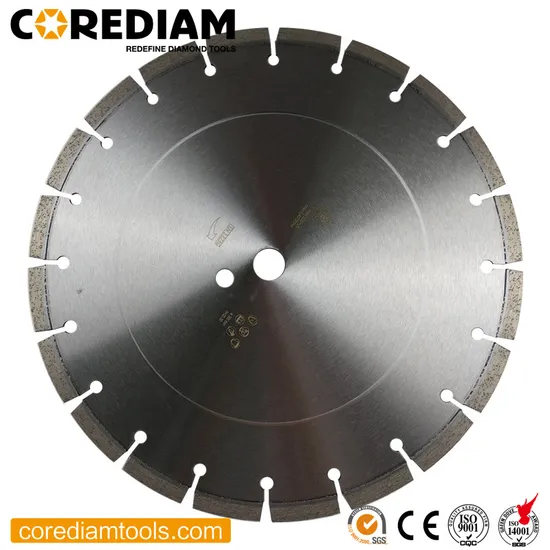

Laser Welded Concrete Cutting Disc with 10mm Segment Width From China Diamond Tool Manufacturer

Product Description

1. Product Introduction
Diamond Concrete Blade With Profile Segment is laser welded, the segment style is segmented with key-slot, in this state we make the segmented saw blade have high strength and also improve its cutting performance. In order to reduce the stress to the steel core and prevent steel core cracking during cutting some hard materials, we have made undercut segments on the segments to protect the steel cores. The laser-welded concrete saw blade can be installed on handheld saw, floor saw, walk-behind saw, using for dry or wet cutting concrete, cured concrete, green concrete reinforced concrete cutting. Concrete saw blades have good cutting performance, fast cutting speed, and long life.
Features of Concrete diamond saw blade
1) Undercut Protection segments provide longer life when cutting Abrasive Materials.
2). Both Dry and Wet Use.
3) Different Cutting slots have a different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevents clogging.
4). Easy and smooth cutting
5). Long cutting life
6). Different grade to choose
2. Application
These blades are used for cutting various kinds of cured concrete, reinforced concrete, concrete slab with superior efficiency.
3. Specification

Item No.	Diameter	Segment Height	Segment Width	Arbor
CCLA30010	300mm	10mm	3.2mm	20/25.4mm
CCLA35010	350mm	10mm	3.2mm	25.4mm
CCLA40010	400mm	10mm	3.2mm	25.4mm
CCLA45010	450mm	10mm	3.6mm	25.4mm
CCLA50010	500mm	10mm	3.6mm	25.4mm
CCLA55010	550mm	10mm	3.6mm	25.4mm
CCLA60010	600mm	10mm	4.5mm	25.4mm

OEM service offered.
4. Delivery time Our leading time will be about 2 weeks for the batch order.

5. How is the quality?
First, we have a very serious control system.
Second, in the face of different markets, we have different quality levels. The main promotion for Euro and US markets is the premium level. The main promotion for the Middle East Market is the standard level.
Third, the different quality level has different cutting speed and working life.
Company Profile Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing the manufacturing and marketing diamond tools industry. We have the most extensive, innovative, and powerful range of diamond tools for construction, stone, and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.

---
