US$1,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Certification
CE, ISO9001: 2000
Mini.Ground Clearance
80mm
Crawler Grounding Length
1140mm
Transport Package
No Package or Wooden Box
Origin
Qingzhou City, Shandong Province, China

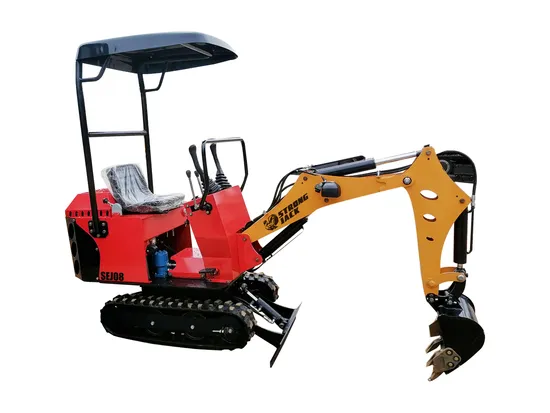

Product Description
ADVANTAGE: 1. ENGINE:KOOP 192F ENGINE,RATED POWER 7.6KW,WHICH GURANTEES SUPER POWER
2. STABILITY:USING THICK HIGH-STRENGTH STEEL PLATE AND UNLTRASONIC FLAW DETECTION ECHNOLOGY FOR WHOLE STRUCTURE BODY
3. CHASSIS:BIG SUPPORTING WHEEL EFFECTIVELY AVOIDS RUBBER TRACK DERAILMENT
4. CONTROL HANDLE:SIMPLE,EASY TO DRIVE,EVEN NO OPERATING EXPERIENCE CAN OPERATE FREELY IN EXTREME TIME
5. CONVENIENCE:SMALL SIZE,CONVENIENT FOR ALL KINDS OF OPERATING SITE,EVEN VERY NARROW ROAD CAN PASS AND OPERATE FREELY
SPECIFICATIONS
| SPECIFICATIONS |
| ENGINE POWER | 7KW |
| BUCKET CAPACITY | 0.025m3 |
| ENGING MODEL | KOOP KD192F |
| OPERATING WEIGHT | 800kg |
| MAX.DIGGING FORE | 7.5kN |
| WORKING PRESSURE | 18Mpa |
| SWING SPEED | 12rpm |
| WALKING SPEED | 2.2km/h |
| GRADEABILITY | 30° |
| WORKING RANGE |
| MAX.DIGGING DISTANCE | 2575mm |
| MAX.DIGGING DEPTH | 1000mm |
| MAX.DIGGING HEIGHT | 2560mm |
| MAX.DUMPING HEIGHT | 1780mm |
| MIN.TURING RADIUS | 1100mm |
| DOZER BLADE LIFTING HEIGHT | 150mm |
| DOZER BLADE SUBSIDENCE DEPTH | 100mm |
| OVERALL DEMENSION |
| WIDTH | 720mm |
| AWNING HEIGHT | 2030mm |
| LENGTH | 2600mm |
| MINI.GROUND CLEARANCE | 80mm |
| CRAWLER GROUNDING LENGTH | 1140mm |
| CRAWLER WIDTH | 150mm |
PACKING PHOTOS
>>
