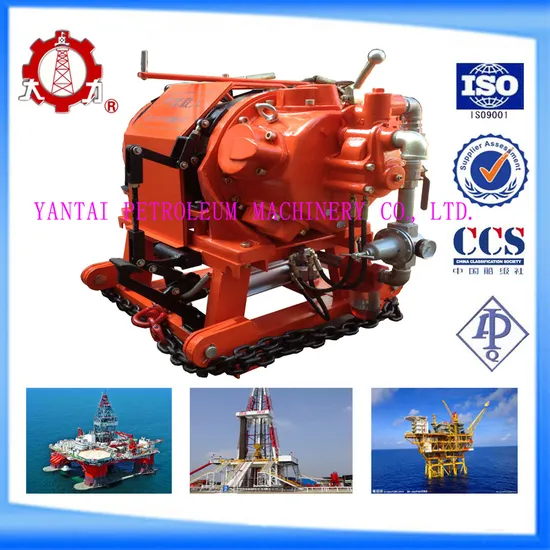

Jqh50*12 Air Winch Tugger with Hand Brake Auto Brake 50kn

Product Description

Benefits & Features * Compact design with easy mobility
*Designed for easy and safe operation
*High durability for applications in harsh environments
*Resistant to overheating damage and at overload capacity
*Continuous operation at full load
*Large drum diameter to prolong rope life
*Marine grade paint for harsh environment Worldclass Quality, Outstanding Performance *Poppet / spool valve construction to eliminate air leakages *Reverse rotation available. Valve handle operation allows free handling of the load as air flows into the control valve *Built-in radial piston air motor *Ball / roller bearings minimize friction *Set-up reduction ratio works on rope pull and line speed *Claw clutch mechanism allows safe, accurate handling in locked ON/OFF positions *Automatic or manual brake *Use sealed ball bearings to prevent oil leakage *Self closing throttle valve shuts off automatically when released
Specification

Items	Parameters	Measurement Unit
Rated Working Pressure	0.6-0.8	Mpa
Rated Pull Force	50	KN
Rated Cable Speed	12	m/min
Piston Air Motor Model	TMH17	-----
Piston Air Motor Rated Power	17	kW
Piston Air Motor Air Consumption	247	L/S
Drum Diameter	222	mm
Drum Width	335	mm
Drum Wheel Diameter	465	mm
Cable Diameter	15.875	mm
Cable Storage	120	m
Air Inlet Diameter	1 1/4	in
Configuration	1200*920*989	mm
Weight	498	KG

---
