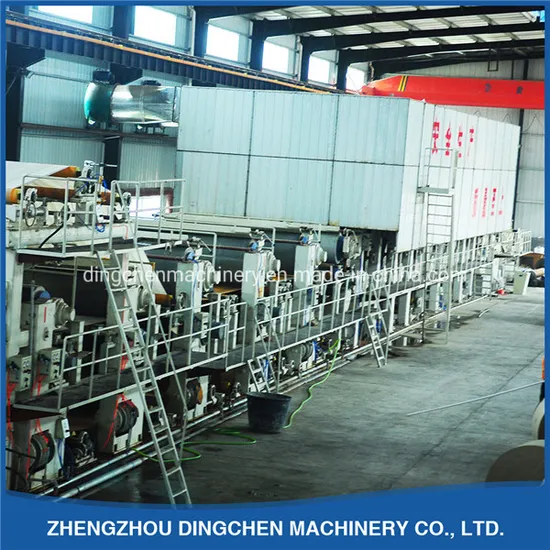

Coated White Top Liner Paper Production Line

Product Description

Coated White Top Liner Paper Production Line
I.Technical parameters:
1.Raw material: white shavings and waste paper
2.Output paper: coated duplex board
3. Net paper width: 2400mm
4.Paper grammage: 200-450g/m2
5.Capacity: 50T/D
6.Working speed: 30-70 m/min
7.Design speed: 100m/min
8.wire width:2950mm
9.Rail gauge: 3400mm
10.Drive way: AC frequency conversion adjustable speed, sectional drive

II.Main equipments and structure :
1.Cylinder part:
Φ1500mm×2950mm×3400mm stainless plate cylinder mold 6pcs, Φ450mm×2950mm×3400mm couch roll 6pcs, rubber shore hardness 38ºC±2,Φ500mm×2950mm×3400mm reverse roll 1 pc, rubber shore hardness86ºC±2. Pneumatic control couch roll , Manifold distributor, step diffusion headbox.

2.press part:
Pre-press roll 1 set ,Top roll Φ450mm×2950mm×3400mm natural marble roll.
Bottom roll Φ400mm×2950mm×3400mm rubber roll,rubber shore hardness96ºC±2.
Major diameter blind press,Φ850mm×2950mm×3400mm rubber roll 2 pcs,rubber shore hardness98ºC±2,bottom roll with drive device,Pneumatic control

3.Dryer part:
Φ1500mm×2950mm×3400mm alloy dryer 22pcs, among which there are 2 pcs chromium facing dryer,with
cleaning scraper knife 22pcs,arrangement 14pcs+sizing+8pcs .

4.sizing part:
Top roll Φ800mm×2950mm×3400mm imitation stone roll 1pcs,hardness 100ºC±2
Bottom roll Φ805mm×2950mm×3400mm rubber roll 1pcs,hardness 96ºC±2,double drive device,pneumatic control device

5.coating part:
coating head 2sets,2400mm×4000mm heat air drying box 6sets,pneumatic lifting

6.Calender part: Φ575mm×2950mm×3400mm chilled roll 2 pcs, pneumatic pressure control

7.Winding part: 2400mm horizontal pneumatic winding machine 1 set

8.Rewinding part: 2400mm frame upper feed rewinding machine 1 set.

III.Main equipment parts:

NO.	Equipment	Qty(set)
1	2400mm multi-dryer and multi-cylinder paper machine	1 set
2	Coating machine	1
3	Semi-closed dryer hood	2 sets
4	Axial-flow ventilator	5 sets
5	Type 16 roots vacuum pump	2set
6	Suction box	7sets
7	1.2m2Screw air compresser	1 set
8	Air tank	1 set
9	Frequency conversion controlling cabinet	1 set
10	Working platform	1 set
11	6T boiler	1 set
12	Sizing machine	1set
13	Calender	1 set
14	Horizontal pneumatic winding machine	1 set
15	Frame-type rewinding machine	1 set

IV.Pulp making equipment 1:

1	12m conveyor	1 set
2	10m3 D type hydrapulper	1 set
3	Φ850mm fiber separator	1 set
4	1.8m2 vibration screen	2 sets
5	High consistency desander	1 set
6	Medium consistency desander	1
7	1.6m2 pressure screen	1 set
8	0.6m2 pressure screen	2 sets
9	Low consistency desander	14pcs
10	Φ750 impeller	5sets
11	Φ380 refine	3 sets
12	-150m3 pulp pump	1 set
13	200m3 pulp pump	1 set
14	200m3 pulp pump	1 set
15	-150m3 pulp pump	1 set
16	120m3 pulp pump	1 set
17	250m3 pulp pump	1 set
18	120m3 pulp pump	1 set
19	400m3 pulp pump	1 set
20	100m3 pulp pump	4 sets

Pulp making equipment 2:

1	5m3 hydrapulper	2 sets
2	Φ750 propeller	4 sets
3	bleacher	4 sets
4	100m3 pulp pump	2 sets
5	200m3 pulp pump	2 sets
6	100m3 pulp pump	6 sets
7	Electrical controlling cabinet	16 sets

Company Information Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly! Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations. Technical Advantage 1.Experienced producing team 2.Advanced technological strength Product Advantage 1.Through the international authentication 2.The same material the most preferential price 3.A lot of varieties for the customer to choose Service Advantage 1.Technical consultation 2.Project evaluation 3.Detailed design of factory 4.Installing and testing the whole production line 5.Training engineers and workers 6.Supplying spare parts for long time Packaging & Shipping
