Sr100 Video Doorphone System 125kHz Mini RFID Embedded Card Reader

Product Description

Product Description:
Mini embedded RFID reader is almost the smallest RFID reader in the world. It is made of durable and fire-proof material and has excellent temperature resistance properties.
Mini embedded RFID reader is very easy to install, just conect one wire (Idata), you can use it.
Mini embedded RFID reader is often used in narrow frame door and video doorphone system, It possess the function of tamper device.
Features:
• Metal Mortise Mount mini rfid reader
• Mini embedded RFID reader
• lD/125KHZ, IC/13.56MHZ optional
Technical Specification:

Porduct name	Mini RFID access card reader
Card type	ID 125KHZ or IC 13.56MHZ
Wateproof	IP68
Voltage	DC8-18V
Current	<=100MA
Amblent temperature	-30ºC~50ºC
Read range	1-3.5cm
Output fomat	Wegand 26-34
LED	Yes
Material	Poliamd(high temperature resistant,fire prevention)
Dimensions	D26*22mm
Spiral diameter(mm)	D20mm
Weight	0.02kg
Color	Sliver

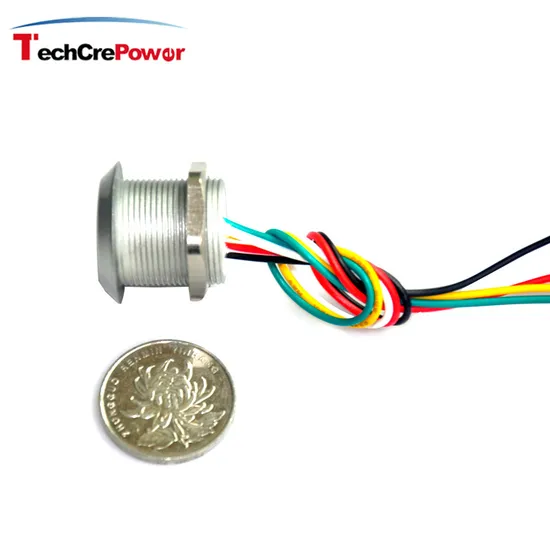

Product display:

---
