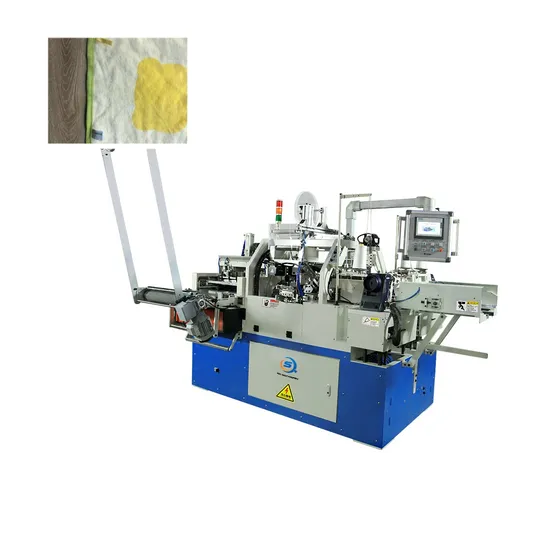

Napkin/Towel Length Hemming Machine - Lock Stitch & Cross Cutting Machine

Product Description

Product DescriptionWe are manufacturer of terry towel automatic sewing machine.
Our machine is suitable for bath towel,hand towel,kitchen towel,and napkin product.
also have machine for bag automatic sewing.
All type towel machine from cutting to hemming to packing.

Automatic Towel Sewing Machine
Step	Machine Name	Main Specification	Optional device
First step	Auto length slitting/cutting machine	Working width 280cm,360cm
		Knife-5pcs/6pcs
Second step	Auto length/longitudinal hemming machine	Standard working width is 120cm,max 180cm	folded label attachment
		Chain stitch,single needle/double needle	hanger lable dispenser
		Overlock stitch	hanger attachment
Third step	Auto cross cutting & hemming machine	Max working width 100cm	folded label attachment
		Lock chain stitch/chain stitch	hanger lable dispenser
		lable size Length 40-100mm,width 20-45mm	hanger attachment
Other Machine for towel
1	cross cutting machine	it is for some special product,need to cut firstly,then print
2	multi function cross hemming machine	it is suitable for hand towel,bath towel and bed linens
3	towel packing machine	10pcs hand towel/bag
4	hand bag auto sewing machine	length and cross hemming both available

Fully automatic length hemming machine
Working width:made by order 120-180cm
Adjustable size 17-110cm/26-165cm
Speed 20m/minitue
Sewing machine speed 0-6000r/min
Main component:Deviation correction device,edge curling device,sewing device,fabric swinging device,detection device
It can sewing terry,also can sewing normal fabric
Stitch:Chain or Lock
Needle:single or double
single needle chain stitch lock stitch Double needle chain stitch
Fully automatic hand towel cross cutting & hemming machine
Max Working width:45cm
Minimum workding width 23cm
Towel width 17-45cm
Towel length17-110cm
Main Components:Feeding device,robotic arm device,heating device,cutting device,back scanning device,pressing device,folding device,handing device,sewing device,various labeling machines.
Speed 600pcs/hour
Sewing speed 0-4000r/minFully automatic bath towel cross cutting & hemming machine
Max Working width:100cm
Towel width 45-90cm
Towel length 70-190cm
Main Components:Feeding device,robotic arm device,heating device,cutting device,back scanning device,pressing device,folding device,handing device,sewing device,various labeling machines.
Speed 500pcs/hour
Sewing speed 0-4000r/min
Automatic towel longitudinal cutting/slitting machine/terry length cutter
Adjustable size 25-2800mm or 25-3600mm
Speed 0-40m/minitue
Main components:deviation correction device,cutting device,swinging device,detection device
It can cut terry fabric,also can cut normal fabric

Product Parameters

Main Parts Name	Brand	Original
Sewing Machine-Right	Pegasus	Japan
Sewing Machine-Left	Own brand	China
PLC	Siemens	Germany
Touch screen	Siemens	Germany
Low voltage electrical appliances	Schneder	France
Optoelectronic sensors and fiber optic sensors	Panasonic	Japan
Proximity switch	IFM	Germany
Servo System	Weichuang	China
Pneumatic components,	Airtank	Taiwan
Bearings	Harbin	China
Linear guide rail	Cyber	China
Edge cutting knife:processed with special tungsten steel technology, wear-resistant and durable		China

Our AdvantagesMain Maintenance Cost is lower
User-Friendly Operation
Competitive Pricing,the best price in China
We are manufacturer of terry towel,also produce the machine for weaving towel and towel sewing machine.
We can supply whole production line for terry towel
After Sales Service1.full communication before making contract Comminicate on time after making contract
2.Arrange visa and air ticket in advance when the goods arrive at customer's factory.
3.Send good engineer to guide customer to install the equipment and trial the machine.
4.10days more Training guidance is available after installation trial.
5.Customer can send 2-3 engineer to China,we will arrange them to get trainning in good factory,to learn management,working skill,and operation training.
6.Online service is available Spare parts for reservition:we will advise customer to buy,also will give some for free.
SQ full product list

Name	Model	Usage	Advantages
air jet loom	SQ930	weave all fabric	High speed,low price
air jet loom	SQ910	calico or gauze fabric	low price
air jet loom	SQ710	gauze fabric	lower price
air jet loom	SQ720	glassfiber fabric	high output
air jet loom	SQ930M	terry towel	high output,low price
air jet loom	SQ810	velvet fabric	high output,low price
water jet loom	SQ822	filament heavy fabric	low price
water jet loom	SQ408	light weight fabric	high speed
water jet loom	SQ8100	high quality polyester fabric	good quality
water jet loom	SQ857	PP PE fabric for tarpaulin	good quality,low price
warping machine	SQ-YGA	Direct warping,for gauze	good quality
split warping machine	SQ188	for mono yarn	low price
sizing machine	SQ-HT	cotton yarn,blend yarn,short fiber yarn	good quality,low price
sizing machine	SQ-JSD	filament yarn	good quality
medical gauze production line		weaving-bleaching-final packing	more experience
terry towel production line		warping-weaving-dyeing-sewing	save customer time
cotton/rayon fabric production line		warping-sizing-weaving-packing	save customer engergy
shemagh loom		shemagh yashmagh Arab scarf weaving machine	more experience
leno loom		leno fabric weaving machine	more experience

Terry Towel Production Line
Warping-Weaving-Dyeing-Sewing
Normal Fabric Production line
Warping - Sizing - Weaving (with all assistant equipment)
Medical gauze production line
Warping - Weaving - Bleaching - Gauze machine(cutting,folding,rolling,packing machine)

---
