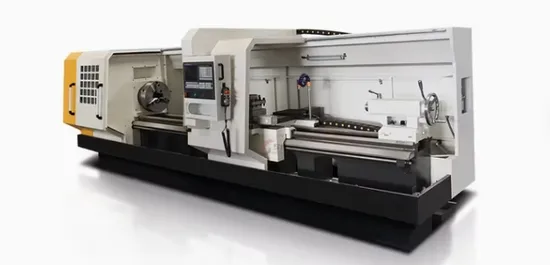

Heavy Duty CNC Pipe Lathe Machine Qk1319 Horizontal Oil Country Pipe Threading Lathe Machine

Product Description

Heavy Duty CNC Pipe Lathe Machine QK1319 Horizontal Oil Country Pipe Threading Lathe Machine
Product Description
CNC PIPE THREADING LATHE INTRODUCTION
This series CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
FEATURES
Big spindle bore and double chuck to ensure process big diameter pipe
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Carriage and guide way contact surface use Turcite B to maintain accuracy
Technical Specifications:

SPECIFICATION	Units	QK1319
Swing over bed	mm	630/800
Swing over cross slide	mm	340/520
Distance between centers	mm	1000/1500/3000
Pipe threading range	mm	50-193
Guideway width	mm	550
Max. load capacity	T	3
Spindle bore	mm	200
Spindle speed steps	-	VF. 4 steps
Spindle speed range	rpm	20-550
Chuck	mm	φ500 3-jaw manual
Turret/tool post	-	CNC turret 4 position
Tool shank size	mm	32 x 32
X axis travel	mm	320/420
Z axis travel	mm	850/1350/2850
X axis rapid traverse	mm/min	4000
Z axis rapid traverse	mm/min	6000
Tailstock quill diameter	mm	φ100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	250
Main spindle motor	kW	11
Coolant pump motor	kW	0.125
Weight for 1000	kg	4600
Weight for 1500	kg	5100
Weight for 3000	kg	6100
Dimension for 1000	mm	3300x1880x1850
Dimension for 1500	mm	3800x1880x1850
Dimension for 3000	mm	5300x1880x1850

Detailed Photos


Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
