2000mm C-Clamp Spot Belt Repair Press Machine

Product Description

Product Description

Product Name	Spot Repair Vulcanizing Press Hot Splicing Machine For Rubber Belt
Working Pressure	0.8mpa
Belt width	From 600 up to 2000mm
Size	1300*300*780 MM
Spot Repair Vulcanizing Press Hot Splicing Machine For Rubber Belt

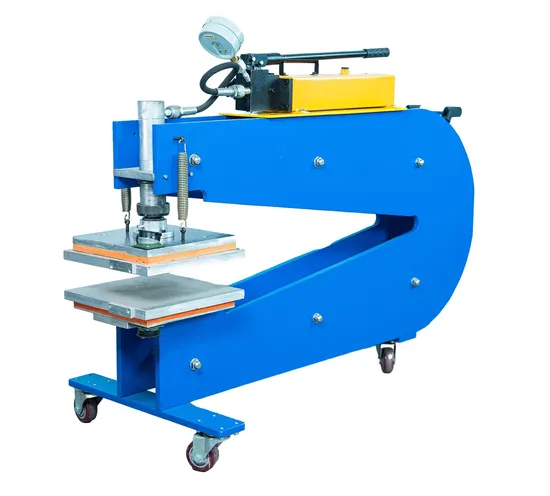

YXL hydraulic spot vulcanizing repair machine YXL hydraulic spot vulcanizing repair machine, also known as C-clamp spot repair vulcanizer ,is an electric heating repair equipment for conveyor belt .During transportation, the surface of the belt may be damaged or pierced by the conveying material.Then the spot vulcanizing repair machine can be used to fix it .The machine consists of frame, two heating plates, an integrated hydraulic lifter and an electric control box.The frame is made of high-strength aluminum alloy, it's small size, portable,safe and reliable.This machine is mainly applied to repair less than 300 * 300 dot damage. Click here for more information !!!
Available for several belt widths from 1200mm to 2400millimetre (superior dimensions under request).The vulcanizing area is composed by 2 heating platens that hold the heating elements. Available for up to 2400millimetre wide belts. Removable platens for easier handling. Automatic control unit. Water cooled. SPECIFICATIONS
Application method: 1. Transfer machine to the repair site.
2. Fill glue in the damaged areas that need to be repaired (see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested).
3. Place the frame under the belt and align it with the damaged area.
4. Place the down heating plate just below the damaged area of the belt and then place the upper frame.
5. Press the hydraulic lever until it reaches enough pressure level.
6. Get the first power wire well connected to the electrical control box. Connect the second wire with the electric control box and the upper and down plates.
Note that it corresponds to the sign on the electric control box.
7. Turn on the electric control box and start the vulcanizing repair process.
Our Services Pre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging & Shipping We use fumigation-free box as our packing box.It has clean and tidy appearance,easy to load and unload.Comply with the export standards of the customs.

Customer Photos
Company Profile
FAQ 1. Q: Are you a manufacturer or trade company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in the beautiful Qingdao West Coast Economic Zone Nearest airport is Qingdao liuting international airport kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspect in before the machines leave the factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client's requirement.

---
