Product Details
Product Description
Product Description

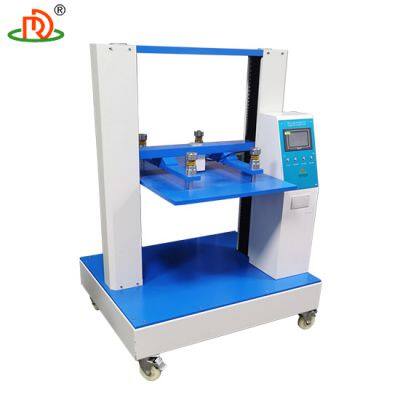

Carton Compression Test Machine is specialized for testing the compression performance of cartons. Generally, suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
FEATURES
Hardware Features:
1. Touch screen control, easy operation and Multi function.
2. Double-ball guide rob design, ultra-high transmission accuracy, smooth operation and high transmission power
3. The base, electric box and pressure plate are all made of A3 steel, which is formed by precision laser cutting and CNC bending machine bending and welding, and is painted with glossy white and metallic blue color matching baking paint;
4. The frequency conversion motor is matched with the frequency converter to provide power, the transmission is stable, the noise is low, and the speed accuracy can be controlled within ±0.5%.
Software Features:
1. Intelligent configuration such as travel limit protection, overload protection and fault prompt to ensure the user's operation safety;
2. English and Chinese system to meet more customer’s needs;
3. The software interface and icons are clear, The real-time display of each test value can monitor the test at any time.
4. It can perform Compression Test and Stacking Test , and can instantly judge the collapse and automatically stop;
5. With a variety of measurement units, both metric and inch systems can be switched;
6. With automatic return function, self-defined test method function and test data operation analysis function;
7. Equipped with Micro-Printer to print the test result
TEST STANDARDS
TAPPI-T804,JIS-20212,GB4857.3.4,ASTM-D642,QB/T1048,BSENISO 12048,GB/T4857.16,GB/T8167,GB/T8168,GB/T4857.3,GB/T4857.4
SPECIFICATION
Capacity (optional):
| 2T
|
Unit (switchable):
| Kg, Lb, N
|
Load Resolution:
| 1/10,000
|
Load Accuracy:
| ≤0.5%
|
Test Space (L×W×H):
| 1000×1200×1200 mm
|
Speed of Compression:
| 10 ± 3 mm/min
|
Report Items:
| Serial number, Peak value, Average value, Designated holding pressure value; all memorable
|
Structure:
| AC frequency conversion motor ( Taiwan); Ordinary screw rod
|
Dimension (L×W×H):
| 1795×1000×1820 mm
|
Weight :
| Approx. 690 kg
|
Power:
| 220V/ 50Hz
|
Safety Devices:
| Overload protection, overvoltage protection & limited position protection device
|
>>
