Lump Aluminum Copper Wood Paper Rubber Plastic Recycling Crushing Machine Shredder

Product Description

Best Sales POM ABS Plastic Recycling Machine Crusher Grinder Shredder

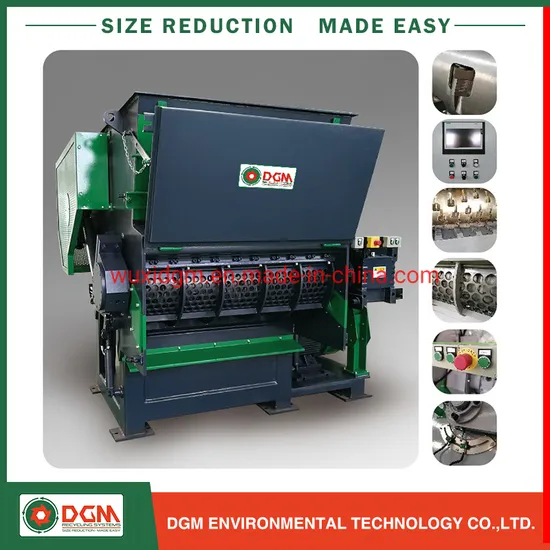

Descriptions The DGS General Purpose Single Shaft Shredder has a 457mm diameter profiled rotor made of solid steel, operating at a speed of 74rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredded material.
The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specifications

Item		UNIT	SGS850	DGS1200	DGS1500	DGS2000
Cutting Chamber		mm	840*1570	1120*1570	1400*1570	1960*1570
Rotor Diameter		mm	457	457	457	457
Rotor Speed		rpm	74	74	74	74
Motor Power		kw	37/45/55	55	75	2*55/2*75
Rotor Knives		pcs	60	81	102	144
Stator Knives		pcs	2*3	2*4	2*5	2*7
Hydraulic Ram Power		kw	3.75	5.6	5.6	5.6
Screen Size		mm	40-100	40-100	40-100	40-100
Shredding Chamber Size		mm	800*730	800*1000	800*1290	800*1860
Dimensions	A	mm	2300	2300	2300	2300
	B	mm	1650	1650	1650	1650
	C	mm	540	540	540	540
	D	mm	660	660	660	660
	E	mm	2250	2250	2250	2250
	F	mm	250	250	250	250
	G	mm	2000	2280	2600	3720

Layout
Features Large diameter flat rotor Machined pocket knife holders Optional hard facing - Concave ground square knives Robust ram construction Heavy duty guide bearings Universal couplings Low speed, high torque geared drive Reduced footprint (compared to horizontal pusher designs) Powerful hydraulic swing type ram Bolt in drive shafts Oil cooling on ram and gearbox Two speed hydraulic system Multiple rotor designs Ram comb plate Amp meter control
Options Hydraulic screen cradle Gearbox with shrink disc Rotor cooling Pipe spacer Touch screen PLC Hopper mounted viewing mirror Increased motor drive Hydraulic drive
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved for CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect the plastic recycling machine from dust and moisture.
2. Plastic packing strap belts are used to fasten wrapping film and machines, and also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the shredder and granulator machines to be safely shipped to customer-appointed location.
5. If you have any other requests for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with more than 15 years of experience in machinery manufacturing, and 25 years of experience in German technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service inquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after- sale service. We have an international network that ensures wherever you are in the world you receive localized high-level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training, and general technical assistance.
Q4: Where is your factory?
Address: No.10 Fushi Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: What is your contact information?
Telephone: +86 18762812155

Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.

---
