Manufacturers Balance Machine Heavy Lifting Tool Suspended Weighing Spring Balancer

Product Description

Chengdu Xinwei is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.Owning a R&D team of more than 20 engineers. and a 18000 sq.m factory , which guarantees that we can offer customers the most professional welding advice and after-sales service. And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a technical team in your country)
Product Description

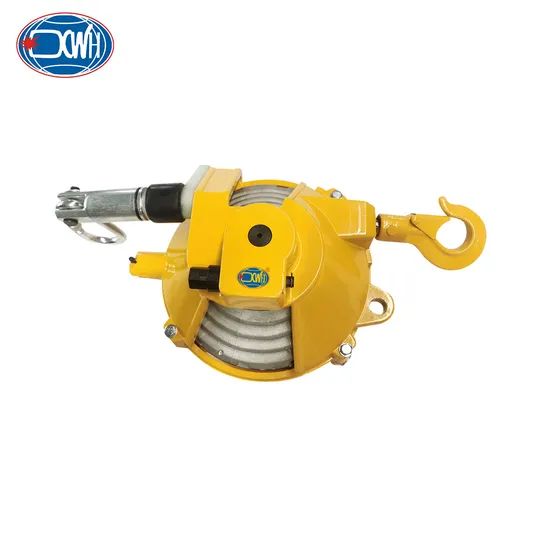

XW Spring balancer is a kind of auxiliary tool used with the operation tools, this series of products with the help of the energy saved by the coil spring make the hanging operation tools in a weightless state, which greatly reduce the labor intensity of the operator and improve the labor production efficiency.
Spring balancer can be used with Xinwei's portable spot welding machine to reduce the weight of workers and the working intensity.
Product Parameters

Models	Loading Capcity(Kg)	Stroke(m)	Rope Dia.(mm)	Weight(kg)
XW-0.5	0.5-1.5	1.0	3.0	0.5
XW1-3	1.5-3.0	1.3	3.0	1.9
XW3-5	3.0-5.0	1.3	3.0	2.1
XW5-9	5.0-9.0	1.5	3.0	3.5
XW9-15	9.0-15.0	1.5	4.0	3.8
XW15-22	15.0-22.0	1.5	4.76	7.3
XW22-30	22.0-30.0	1.5	4.76	7.7
XW30-40	30.0-40.0	1.5	4.76	9.7
XW40-50	40.0-50.0	1.5	4.76	10.1
XW50-60	50.0-60.0	1.5	4.76	11.1
XW60-70	60.0-70.0	1.5	4.76	11.4
XW70-80	70.0-80.0	1.5	4.76	22.0
XW80-100	80.0-100.0	1.5	4.76	24.0
XW100-120	100.0-120.0	1.5	4.76	28.0
XW120-140	120.0-140.0	1.5	6.0	24.1
XW140-160	140.0-160.0	1.5	6.0	28.7

Installation Instructions
1. Select a balancer of appropriate specifications based on the weight of the tools and accessories.
2. When hanging the balancer, be sure to connect the safety rope properly.
3. Adjust the main adjusting worm on the balancer to ensure that the balance weight of the balancer matches the weight of the tool used, ensuring that the tool is balanced at any position within the travel range, i.e. the tool is in a weightless state. When adjusted clockwise, the balance weight increases, and vice versa. When supplying, the balance weight has been adjusted to the middle value. When adjusting, the balance weight should not be higher or lower than the rated value, otherwise it will affect normal operation.
4. When removing tools from the balancer, it is necessary to first pull out the stop pin pull rod, turn it clockwise by 30 °, place it back in the slot, lock the tower wheel (refer to the schematic diagram), and then remove the tool to prevent sudden unloading of the hook from quickly retracting and injuring people or damaging the tool. After reinstalling the tool or equivalent tool, the stop pin can be disconnected and pulled up counterclockwise to reset.
5. When the balancer is not hung with a tool, do not empty it without reason to avoid causing the steel wire rope to get stuck or fall out of the groove.
6. When the operating tool moves horizontally with a slope exceeding 30. When moving, it is necessary to move the tool closer to the vertical position before loosening it, otherwise it may cause the steel wire rope to get stuck in the wrong groove.
7. The load should be suspended vertically
Detailed Photos

Wining by quality, precision to thrive; Dedicated, so Professional. More details, please contact!
Packaging & Shipping

---
