Product Description
Product Description

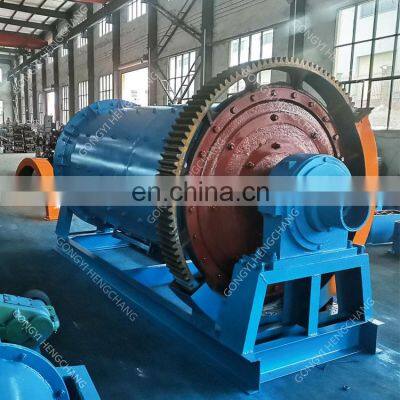

Product Description900*2100 Mini Copper Mining Rock Gold Ore Stone Grinding Mineral Processing Small Horizontal Large Ball Mill MachineBall Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements.Ball Mill is a key equipment to grind the crushed materials, which is widely used in the manufacturing industries, such ascement, silicate, new building material, refractory material, fertilizer, ferrous metal, non ferrous metal and glass ceramics.Dry type ball grinding mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.Energy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as Gold ore, Cooper ore, Magnetite ore, Antimony, Calcite, Kaolin, Mica, Clay, Bentonite etc Ferrou metal or Nonferrous metal materials.Ball Mill Spare PartsFor ball mill, the main spare parts is steel balls, ball mill liners and grate plates. If the customer need the ball liners and grate plates, they can send us the drawing of liners and grate plates, we can cast for them in our casting factory. If you do not have the liner data,we can send our engineer to your site and scale the liners, then we can make the drawing and cast the liner in our foundry factory for you.Production Process >>>With advanced machining equipment, we will offer a most suitable machine for you.1.Steel Cutting 2.Plate Bending 3.Welding 4.Machining 5.Drilling 6.Ball mill head assembly 7.Ball mill head preparing 8.Hollow shaft assembly 9.Large gear preparing 10.Pinion Preparing 11.Testing 12.Ball MillProduct ApplicationEnergy saving mining ball mill is a key equipment in beneficiation plant.It is widely used in ore dressing production line such as gold ore, cooper ore, magnetite ore, antimony, calcite, kaolin, mica, clay, bentonite etc ferrou metal or nonferrous metalmaterials.Working principleBall mill grinding machine is a kind of horizontal drum-type grinding mill with external gear and double bins. Materials goes evenly through quill shaft in feeding device into the first bin, which has ladder lining or ripple lining with steel balls in different specifications.Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. The ground materials are discharged through the discharging board thus the grinding process is finished.ModelCylinder Rotating Speed (r/min)Ball weight (t)Feeding Size (mm)Discharging Size (mm)Capacity (t/h)Power (kw)900×1800381.5≤200.075-0.890.65-218.5900×3000382.7≤200.075-0.891.1-3.5221200×2400354.6≤250.075-0.61.6-5.8371200×4500355.5≤250.074-0.41.6-5.8551500×3000299≤250.074-0.42-7 751500×57002917≤250.074-0.43.5-6110-1301830×450025.415≤250.074-0.44.5-121551830×640024.121≤250.074-0.46.5-152101830×700024.123≤250.074-0.47.5-172452100×450023.724≤250.074-0.48-43 2452100×700023.726≤250.074-0.48-482802200×450021.527≤250.074-0.49-452802200×650021.735≤250.074-0.414-263802200×700021.735≤250.074-0.415-283802400×30002123≤250.074-0.430-50 2452400×45002130≤250.074-0.440-603202700×360020.740≤250.074-0.445-804302700×450020.748≤250.074-0.450-904302700×1300020.760≤250.074-0.450-906303200×45001865≤250.074-0.4--800Company ProfileHengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and10,000 tons of crusher parts.Customer SiteOur machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc.Customer Visit & Our Service(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on theirinvestments. 1.Select equipment model; 2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients; 4.Services during the sale;(B)Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminatethe troubles rapidly; 6.Provide perfect service; 7.Provide technical exchanges...(C).After-sale services:Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminatethe troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges..Packing and deliveryPackaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
>>
