High Performance Z3050X16 Radial Drilling Machine for Metal Projects

Product Description

Product Description

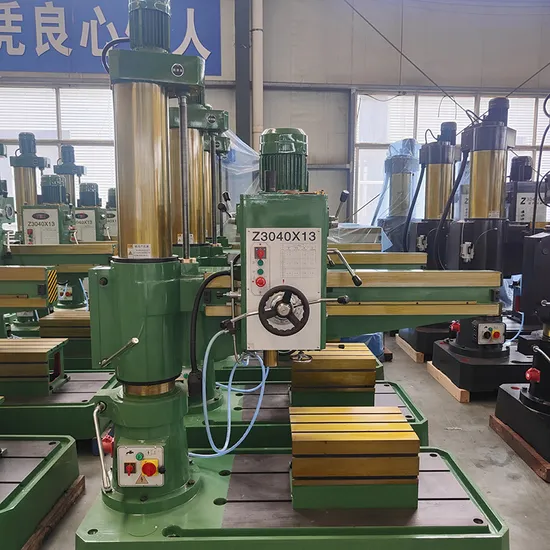

Z3040X13, Z3040×16, Z3050, Z3063, Z3080 Radial Drilling Machine FEATURES:
1. Experience unparalleled efficiency with our hydraulic gear-change structure, designed to save valuable auxiliary time and streamline your operations.
2. Enjoy seamless control with a single handle operation for forward spindle rotation, stop (brake), shift, and neutral-gear, ensuring unmatched convenience and precision.
3. Depend on the robust hydraulic-driven rhombic block that governs the clamp structures of the headstock, radial arm, and both internal and external columns.
4. Benefit from superior safety with our sound protective installations and enhanced external column, crafted for your peace of mind.
5. Our meticulous design and production processes incorporate lines of efficient measures, guaranteeing the machine's durable accuracy and long-lasting performance.
6. The machine's electrical components are designed with user safety as a priority, offering reliability, durability, and straightforward maintenance.
The drill's substantial weight and rigid construction deliver outstanding stability and vibration-free operation, ensuring impeccable performance.A versatile cube table facilitates effortless adjustment and accommodating of the workpiece, enhancing operational efficiency.Effortlessly adjust the arm's height with a motor-driven mechanism for optimal versatility and convenience.A strategically positioned control panel at the drill's front enhances performance and ergonomics, tailored for user-friendly operations.The column's polished surface provides easy, unhindered, and precise arm travel, optimizing your precision tasks.Manual blocking of the head and arm of the column is available, offering additional control and operational flexibility.Our extensive speed range ensures fast yet precise processing, catering to diverse project requirements.
Product Parameters

Modle	Unit	Z3032×10	Z3040×13	Z3050X16/1	Z3063x20/1	Z3080x25
Table SIZE (L*W*H)	mm	630X500X500			800X630X500	1000X800X560
Dimensions of Box Table	mm	630X500			800X630	1000X800
T-slot	No.	5	5	5	7	7
T Distance between two adjacent T-slots		150
T Width of T-slot		22
Dimensions of base	mm		2400X1000X200		2900X1250X250	3530X1400X300
Working surface of base	mm		1560X830		1950X1080	1200X2380
T-slot/Width/Distance		4/28/180			4/28/250	4/28/276
Distance from spindle axis to column	mm	360-1000	360 - 1300	350-1600	450-2000	500-2500
Distance from spindle nose to table surface	mm	140-1100	260 - 1300	320-1220	400-1600	550-2000
spindle head travel(horizontal)	mm	1000	1100	1250	1600	2000
Spindle taper		MT4	MT4	Morse No.5	Morse No.5	Morse No.6
Quill travel	mm	220/280		315	400	450
Max.drilling diameter	mm	35	40	50	63	80
Speed Range /steps	rpm	75-1220	28-1200	25-2000(16)	20-1600(16)	16-1250(16)
Max.output torque of spindle	N.m		500	500	600	1568
Spindle feed/steps	mm/r/step	0.1,0.16,0.25	0.1-0.25	0.04-3.2/16	0.04-3.2/16	0.04-3.2/16
Spindle motor power	kW	4			5.5	7.5
Elevating motor	kW	1.5	1.1	1.5	2.2	3
Coolant pump	kW	0.09	0.09	0.09	0.125	0.125
Clamping type		hydraulic
Overall dimension (L*W*H)	mm	1500×705×2050	1600×700×2050	2500X1070X2840	3080X1250X3400	3730X1400X4025
Package dimension (L*W*H)	cm	158×75×213	167×77×217	258X111X270	318X142X309	380×147×410
Net weight	kg	1100/1200	1500	3500	7000	11000

Radial drilling machines, a pinnacle of hole processing technology, excel in drilling, reaming, tapping, end-face repair, and more. Distinctive for their hydraulic or mechanical clamping structures, these machines are celebrated for their user-friendly operation, adaptability, and typical functionality. Ideal for both single and batch production of large porous parts, they are indispensable in general machining workshops.
