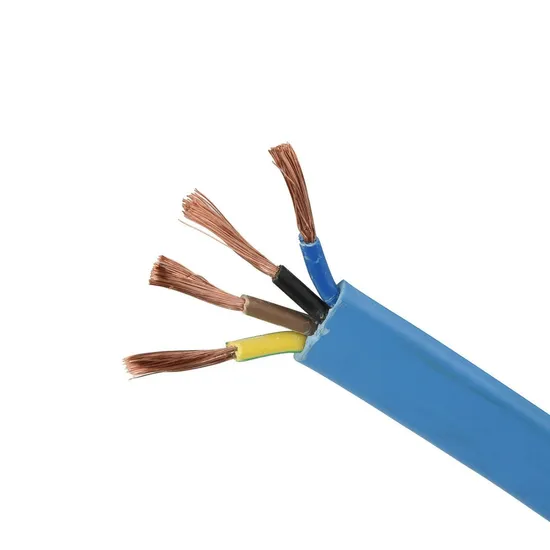

300/500V Deep Well Water Power Submersible Pump 16mm Flat PVC Cable

Product Description

Product Description
PVC stands for "Polyvinylchloride". The application areas for this thermoplast in the plastics industry are diverse. There are various types of PVC used in the wire and cable industry.
Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.
Furse PVC insulated stranded copper cable is available in a range of sizes to meet differing current ratings (see product information table).

BV-105 model not more than 105ºC, others not more than 75ºC, installation temperature not lower than 0ºC.
APPLICATION: This product is fit for ac rated voltage 450/750V.

Disclaimer:
* Parameters mentioned in the document are indicative and can vary subject to different standards
* Customizations are available on select products. Please indicate your interest by reaching out to the sales team
MULTI-CORE FLEXIBLE ROUND CABLE
(ODM/OEM)
Usage:
Fixed laying, can be used for indoor exposed laying or pipe threading and other occasions
Construction
Conductor:Pure copper/Copper clad copper/Copper clad aluminum wire
Insulation:PVC
Sheath:PVC
Insulation colour:According to your needs
Delivery cycle:
Depending on your quantity
Reference data table

Normal area (mm²)

Conductor Construction (mm)

Outside Diameter (mm)

Insulation Thiness (mm)

2x1.0+E	2Cx1.13+0.97	4.1*7.7	0.8
2x1.0+E	2Cx7/0.43+0.97	4.2*7.9	0.8
2x1.5+E	2Cx1.38+1.13	4.8*9	0.9
2x1.5+E	2Cx7/0.52+1.38	4.9*9.2	0.9
2x2.5+E	2Cx1.78+1.38	5.6*11	1.0
2x2.5+E	2Cx7/0.67+1.38	5.8*11.2	1.0
2x4.0+E	2Cx2.25+1.78	6*11.8	1.0
2x4.0+E	2Cx7/0.85+1.78	6.2*12.4	1.0
3x1.0	3Cx1.13	4.1x9.1	0.8
3x1.5	3Cx1.38	4.8x10.8	0.9
3x2.5	3Cx1.78	5.7x13.1	1.0
3x4.0	3Cx2.25	6x14	1.0
2x0.75	2Cx24/0.2	4x6.4	0.8
2x1.0	2Cx32/0.2	4.1x6.6	0.8
2x1.5	2Cx30/0.25	4.8x7.8	0.9
2x2.5	2Cx49/0.25	5.7x9.4	1.0
2x4.0	2Cx56/0.3	6x10.2	1.0
4x0.75	4Cx24/0.2	4x11.2	0.8
4x1.0	4Cx32/0.2	4.1x11.6	0.8
4x1.5	4Cx30/0.25	4.8x14	0.9
4x2.5	4Cx49/0.25	6.1x17	1.0
4x4.0	4Cx56/0.3	6.4x19.6	1.0

---
