Competitive Price Double Head Window Cutting Saw for PVC Profile

Product Description

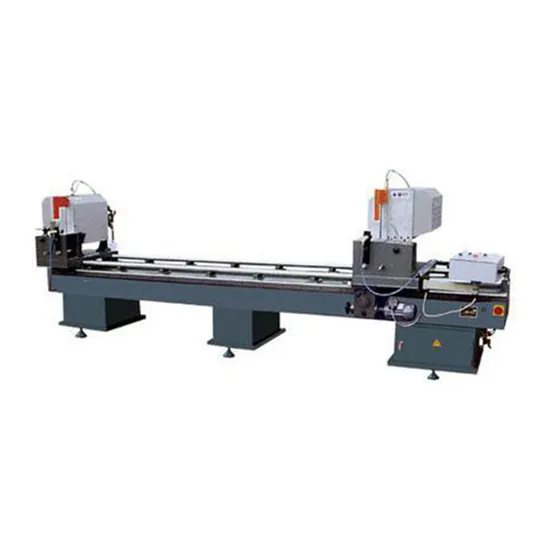

Competitive price Double Head Window Cutting Saw for PVC Profile
Equipment Features for Competitive price Double Head Window Cutting Saw for PVC Profile:
Glasino CNC Double Head Cutting Saw is used for not only aluminum and PVC profile cutting, but also aluminum corner connector cutting.
1. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
2. Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
3. Adopted DELTA/ MITSUBISHI CNC technique, can achieve various profile auto cutting off.
4. 45°and 90° cutting is available.
5. GERMANY Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Saw blade rotate smoothly due to high accuracy main spindle.
8. Uniform sped feeding and smooth motion
8. Auto-opening guard shield ensured safety operation.
10. The two-way location-and-clamping feature high precision and steadiness.
Details of Competitive price Double Head Window Cutting Saw for PVC Profile:CNC type:
Manual type:
Working samples of Competitive price Double Head Window Cutting Saw for PVC Profile:
Technical Parameter

Power Supply	380V 50Hz	Cutting Angle	45 degree 90 degree
Power Rate	3Kw	Cutting Length	380~3700mm
Motor Speed	3200rpm	Max. Cutting Width	115mm
Saw Blade Specification	Φ450×4.4×Φ30×Z120	Max. Cutting Height	≤150mm
Air Pressure	0.5-0.8Mpa	Overall Dimension	4800×1300×1450mm
Air Consumption	120L/min	Weight	1000kg

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.

---
