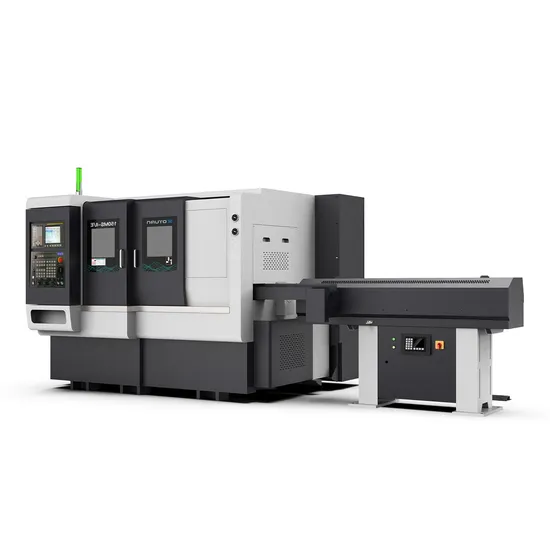

Double/Dual Spindle CNC Turning Lathe Center

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed simultaneously in one clamping, greatly simplifying manual operation, increasing output, and reducing processes. The second spindle is capable of full turning and can handle workpieces during machining, reducing cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with a cooling system to suppress thermal displacement, ensuring a constant working temperature of the spindle. The spindle system has passed strict dynamic balance tests, offering excellent precision retention, high rigidity, and efficiency. This enables the machine to perform both finishing and rough machining, including heavy cutting, making it ideal for mass production of complex and highly finished products.product.
2. High rigidity integral servo power turret with rapid and precise tool change performance. The tool holder installation uses a high-rigidity BMT interface, and the power transmission shaft is driven by a servo spindle motor.
3. The machine is equipped with THK linear guide rails and ball screws. The heat-treated and precision-ground ball screw ensures optimal precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, minimizing thermal displacement and greatly enhancing machining accuracy. High rigidity, large size, and heavy-duty linear slide rails maintain machine accuracy during impacts, ensure smooth displacement, low noise, and prolong service life.
4. Standard configuration with FANUC system, utilizing FANUC servo motor for feed drive.
5. Perfect hydraulic and lubrication systems, featuring high-quality hydraulic pumps, valves, and components, significantly reducing failure rates. The hydraulic and lubrication system design is simple and reliable.
6. Incorporates a Taiwan rotary chuck, oil cylinder, and automatic chip removal device, dramatically reducing operator labor intensity while ensuring safe and efficient production. All functional components can be programmatically controlled. Special fixture.
Product Parameters

Item	Unit	150MS-III/E
Max.swing diameter over bed	mm	Ф380
Max.processing diameter	mm	Ф100
Max.processing diameter Over tool holder	mm	Ф160
Max.processing length	mm	150
Spindle nose	type	A2-5
Max.speed of spindle	rpm	5500
Oil cylinder/Chuck	"	6
Spindle bore diameter	mm	Ф56
Bar diameter	mm	Ф45
Direct drive spindle motor power	kw	17.5
Spindle torque	N.m	62-125
Sub spindle nose	type	A2-4
Max.speed of Sub spindle	rpm	6000
Oil cylinder/collect	"	5
Sub spindle bore diameter	mm	Ф46
Bar diameter	mm	Ф32
Direct drive sub spindle motor power	kw	11
Sub spindle torque	N.m	27-66
X1/Z1 motor power	kw	1.8/1.2
X2/Z2 motor power	kw	1.2/1.2
X1/Z1 travel	mm	135/370
X2/Z2 travel	mm	215/400
X1/Z1/X2/Z2 fast moving	m/min	30/30/30
X1/Z1 slide rail type	/	Roller 35/35
X2/Z2 slide rail type	/	Roller 30/30
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Upper power turret type	/	BMT45-12T
Upper power turret motor	Kw/N.m	2.2/26
Max.speed of upper power turret	rpm	6000 ER20
Specification of outer diameter tool holder	mm	20x20
Specification of inner diameter tool holder	mm	Ф32
Adjacent tool change time	sec	0.15
Lower power turret type	/	BMT40-8T
Lower power turret motor	Kw/N.m	2.2/26
Max.speed of lower power turret	rpm	6000 ER20
Max.speed of lower power turret	mm	20x20
Specification of outer diameter tool holder	mm	Ф25
Specification of inner diameter tool holder	sec	0.15
Machine dimension	m	2.2x2.1x1.7
Machine weight	kg	3500
Cutting fluid tank volume	L	180
Hydraulic unit box volume	L	40
Hydraulic pump motor power	kw	1.5
Lubricant oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide us with your specifications, and we will select the ideal model for you. Alternatively, you may choose the exact model, or send us the product drawings, and we will recommend the most suitable machines tailored to your needs.
Q2: What are the main products of your company?
We specialize in a diverse range of machines including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, as well as Turning and Milling Composite Processing machines.
Q3: Where is your factory located? How can I visit there?
We operate five factories located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us at any of these locations.
Q4: How do you handle transportation?
We offer comprehensive transportation solutions including DDP, CIF, FOB, and FCA.
Q5: What are the payment terms?
Our payment terms are T/T with a 30% initial payment upon order and 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: The MOQ is 1 set. (Note: For some low-cost machines, the MOQ may be more than 1 set.)
We would like to know:
1. We strongly suggest you provide the size and material of your workpiece for our evaluation. Ideally, send us the workpiece drawing so that we can recommend the most suitable model for your requirements.
2. If you need a CIF price, please kindly provide the port of destination.

---
