Xuzhou Construction Machinery XE470D 47 Tons Crawler Excavator

Product Description

TRUCKMAN Company
Product Description

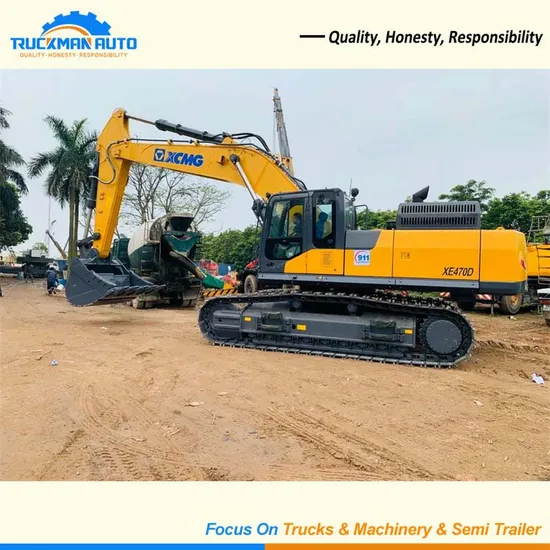

XE470D 47 Tons Crawler Excavator Description
The XE470D 47 tons excavator's engine has the characteristics of low speed, high torque, low fuel consumption, good economy, etc. At the same time, it is in constant power mode within a specific speed range, so that the machine can still maintain strong power output at heavy load and low speed. The hydraulic system of the XE470D 47 tons excavator adopts new technologies such as flow regeneration energy saving technology, bucket rod confluence pressure reduction technology and valve core opening adaptive technology to further reduce the return oil back pressure, improve the excavation force and improve the efficiency of heavy load operation.

Product Parameters
XE470D 47 Tons Crawler Excavator Specification

Model		Unit	XE470D
Operating weight		Kg	46900
Bucket capacity		m³	2.2-2.5
Engine	Model engine	/	QSM11-335
	Injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	274/1800
	Maximum torque/speed	N.m/rpm	1790/1400
	Displacement	L	11
Main performance	Travel speed	km/h	5.4/3.2
	Swing speed	r/min	9
	Gradeability	°	35
	Ground pressure	kPa	83
	Bucket digging force	kN	287
	Arm digging force	kN	221
	Maximum tractive force	kN	338
Hydraulic system	Rated flow of main pump	L/min	2×360
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	28.4
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	725
	Hydraulic tank capacity	L	430
	Engine oil capacity	L	38
Appearance size	Overall length	mm	11670
	Overall width	mm	3582
	Overall height	mm	3890
	Width of platform	mm	2995
	Total width of chassis	mm	3582
	Track shoe width	mm	600
	Wheel base of crawler	mm	4292
	Track gauge	mm	2750
	Counterweight clearance	mm	1324
	Min. ground clearance	mm	519
Working range	Max. digging height	mm	9855
	Max. dumping height	mm	6890
	Max. digging depth	mm	7000
	Max. vertical wall digging depth	mm	4500
	Max. digging radius	mm	10855
	Min. swing radius	mm	4580
Standard	Length of boom	mm	6670
	Length of arm	mm	2900
	Bucket capacity	m³	2.5

Product Features
XE470D 47 Tons Crawler Excavator Features

Reliable and durable
The XE470D 47 tons excavator adopts a sturdy lower walking body to meet the needs of heavy-duty operations. It has higher durability, reliability and maneuverability. It is equipped with a reinforced four-wheel belt with excellent performance and more reliable quality.
Convenient maintenance
The engine hood of the XE470D 47 tons excavator adopts a side-upturning structure design with gas spring assistance. The opening angle is large, which is convenient for the inspection of the engine and radiator.

Anticorrosive Measures
XE470D Excavator Anticorrosive Measures

Construction machinery is usually transported to the customer's port by sea, so TRUCKMAN usually covers the entire machine with a tarpaulin to prevent erosion by seawater. During transportation, especially in areas with poor environments, a tarpaulin can help keep the surface of the machine clean, reducing the need and cost of cleaning and maintenance. A tarpaulin can increase the stability of the machine during transportation, prevent movement or slipping caused by external conditions, and avoid loss or injury. A tarpaulin can not only protect the safety of construction machinery during transportation, but also reduce the cost of subsequent maintenance and repairs, and improve overall transportation efficiency and benefits.

After Sales Service
TRUCKMAN Company After Sales Service
A scientific and complete after-sales management service plan is the guarantee for the normal operation of project equipment. We have formulated a comprehensive and effective after-sales management service plan in combination with the after-sales management system, making corresponding arrangements in terms of personnel, rules and regulations, technical maintenance response and other aspects to help customers solve after-sales problems immediately. We also have a special warehouse that reserves spare parts for construction machinery, which can quickly provide customers with various spare parts to facilitate customers' later maintenance and care.


Customer Feedback
Positive Feedback From Customers

TRUCKMAN has sent a lot of construction machinery to countries in Asia, Africa and Latin America, and has received praise from many customers. We thank every customer for their genuine feedback. Your praise is the biggest motivation for us to move forward, and your satisfaction is the biggest affirmation for us. With this gratitude, we will continue to work hard in the construction machinery industry and bring you higher quality construction machinery.

Company Profile
TRUCKMAN Company Introduction
JINAN TRUCKMAN AUTOMOBILE Co., Ltd. Was established in year 2010, that mainly focus on SINOTRUK, SHACMAN, BEIBEN, FOTON All series new trucks, and all China brand new construction machinery, CIMC and TRUCKMAN semi-trailers And full Trailers export business. The goods can meet all certificate and different work demand, such as BV, SGS, CO, CIQ, GCC, SONCAP, FORM E, ADR certificate etc, also with reasonable price. With years development, our business extended to more than 60 more countries and regions in the world like Nigeria, Angola, Ghana, Tanzania, Kenya, Djibouti, Ethiopia, Mali, Congo, Philippines, Vietnam, Malaysia, Laos, Myanmar even Latin America countries like Chile, Peru...We take"Quality, Honesty, Responsibility" as our enterprise core value to make you best cooperation experience. TRUCKMAN people are brave in pioneering and innovative management, and practice their corporate mission with professional services, and are committed to becoming a world-class enterprise with international characteristics.

---
