Product Description
Product Description

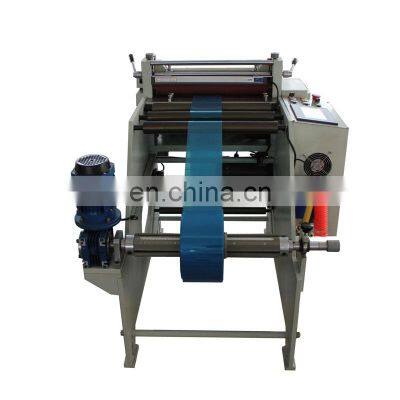

Products DescriptionTechnical parameters:Item NumberDP-360CQDP-500CQDP-600CQWeb Width0-360mm0-500mm0-600mmCutting length0-9999.99mm0-9999.99mm0-9999.99mmCutting speed0-130 cut/min0-130 cut/min0-130 cut/minCutting precision±0.05mm±0.05mm±0.05mmVoltage220V/380V220V/380V220V/380VSize1280*920*1300mm1280*1150*1070mm1500*1300*1200mmWeight240kg270kg320kgTotal Power1.5kw1.5kw1.5kw*the voltage can customize according to your country standards.Features:Taiwan brand servo motor & Japan brand mitsubishi PLC;Touch screen control panel,easy to operate;Can preset and adjust the cutting length ,total cutting quantity and speed;Afer the machine shutting down,it still can remember the amount automatically;Cutting tolerance can be reach ±0.1mm based on material;Optional function:Kiss cut (half-cut)Hot cuttingStatic electricity eliminatorCutting with position sensorApplication:Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes. * Flexible Printed Circuit Boards PCB Cutting Machine(DP-360) * * Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision. Purpose: It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials. * The material thickness shear made: copper aluminum quality cap: 0.15 MM; Nonmetallic material 0.01 ~ 0.3 MM We can produce precision requirements: shear 0.03 ~ 0.5 MM We can produce material wide: 1.0 ~ 360 MM Shear surface quality requirement can be obtained without ruffle and migration Cutting tool material: please indicate the material, may require DuoCi grinding Tools: to provide corresponding maintenance tools Feeder: servo feeding and host integration Installation training: we ask for help in installation and operation of trainingOptional DevicesKiss cutting Material:Utility knife and fixtureThis unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.Photo sensorIf added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.ANTISTATIC SYSTEMBEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM ANTI-STATIC SYSTEM MOTORAfter Sales Service Free sample testing and video for your reference Prompt delivery whthin 24 hours One year warranty ,whole life technical support Free training in our factory available before delivering machinesEngineers available to service machinery overseas Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.BUYING GUIDEIf you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .MaterialPictures are appreciated if possible Diameter ID & OD Thickness mm Weight KGLength you want to cut mmWidth mm
>>
