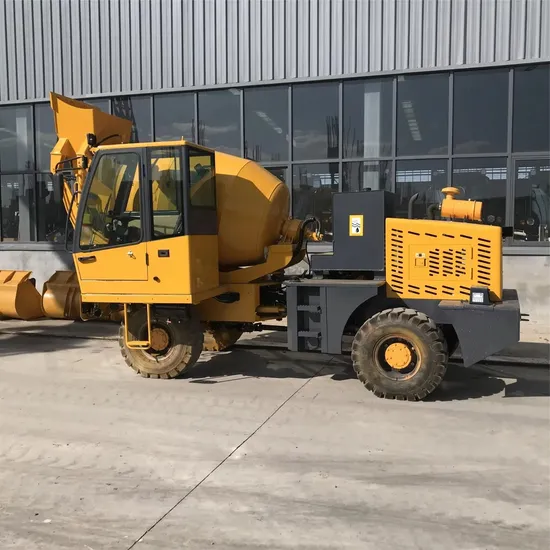

4m³ Self-Loading Mobile Concrete Mixer Truck Slm4 Automatic Concrete Mixer Hot Sale

US$38,000.00
1-4 Pieces
US$28,000.00
5+ Pieces

Basic Info.

Model NO.
SLM4
Type
Concrete Mixing Truck
Machining Process
Hydraulic
Structure
Cylinder Type
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Engine
82kw/2200rpm
Geometrical Capacity of Drum
5.3m3
Max.Output
4m3
Vehicle Speed
0~30km/H
Rotation Angle of Mixing Drum
255
Electrical System
Generator(28V-55A); Accumulator(24V-180ah)
Max. Gradeability
44%
Bucket
600L
Water/Fuel Oil/Hydraulic Oil Tank
900/100/140L
Wheel Base/Wheel Center Distance
2600/1988mm
Inner/Outer Turning Radius
2120/4340mm
Outline Dimension-Travelling State
6100*2425*4008mm
Curb Mass
8800kg
Transport Package
Comply with Export Packaging Requirements
Specification
6100*2425*4008mm
Trademark
Top Brand
Origin
China
Production Capacity
300-500units/Month

Packaging & Delivery

Package Size
610.00cm * 245.00cm * 405.00cm
Package Gross Weight
8800.000kg

Product Description

Product Description
SLM4 concrete mixers is a new 4-cube concrete mixer machine, with a maximum driving speed of 30km/h and a production efficiency of about 12-14m3/ h. All bucket action through the pilot handle to achieve.Multi-function integrationSelf loading concrete mixers is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.Hydrostatic transmissionThe vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.Weighing systemThe aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Product Parameters
Item
Unit
SLM4
Engine

82KW@2200rpm (ChinaII)
Geometrical capacity of drum
m3
5.3
Max.output
m3
4
Transmission system

Hydrostatic; variable pump wih variable motor; four wheel dive
Vehicle speed
Km/h
0~30
Cab

Closed type; bucket movement operated by Joystick
Rotation angle of mixing drum

255
Electrical system

Generator(28V-55A); Accumulator(24V-180Ah)
Max. gradeability
%
44
Bucket
L
600
Water/fuel oil/hydraulic oil tank
L
900/100/140
Wheel base/wheel center distance
mm
2600/1988
Inner/outer turning radius
mm
2120/4340
Outline dimension-travelling state
mm
6100*2425*4008
Curb mass
Kg
8800

Detailed Photos
