Blood Plasma Tubular Extractor Tubular Separator

Product Description

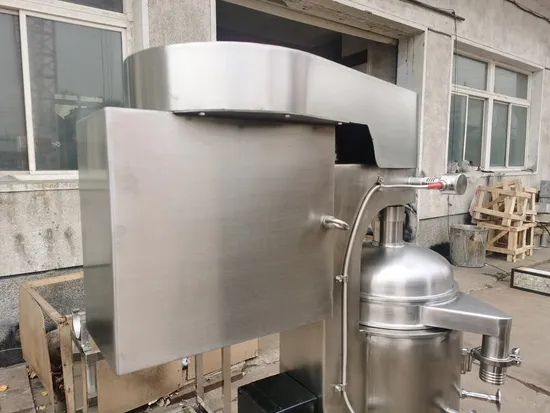

GF Type Tubular Centrifuge GF type tubular centrifuge is for water-oil-solid separation process ,Widely used for plant oil.animal oil,waste engine oil separation ,Such as VCO ,Palm oil Avocado oil,Fish oil ,Chicken oil.Beef oil Olive oilSeabucktorn oil.Tubular Centrifuge is manual discharging machine , so it is suitable for solid content lower than5%.After separation , the solid phase will collect in the rotation bowl ,need to stop centrifuge .for solid discharge .

Technical Paramers

ltem Mode		75	105	125	150
Bowl	Diameter (mm)	75	105	125	150
	Bowl Spped (r/min)	19000	16300	15000	14000
	Bowl Volume (L) .	2.2	3	3	10
Separation Factor		15700	15620	15750	15700
Feefing Nozzle Diameter(mm)		3,5,7		4,6,8
Water-through Output (L/h)		600	1200	1500	2500
Motor Power (Kw)		1.5	2.2	3.0	3.0
Weight (Kg)		300	480	550	600

Tubular separator description
Structure and principle
It is high speed separator. It has better separation. The separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible main shaft and the lower of it is damp floating. The main shaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an over speed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
GFLB model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually dumped after the machine is shut down.
GFLB: It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micro powder, extract liquid from plants, separation of plasma and cell.
Technical Parameter:

model	GF105	GF112	GF125
Bowl inner diameter(mm)	105	112	125
Bowl Effective height (mm)	730	730	730
Bowl Settling volume (L)	6	7	8
Rotary speed (r/min)	17500	16000	15500
Max separation factor	16000	15000	14700
Nozzle diameter (mm)	4/6/8	4/6/8	6/8/10
Material Inlet pressure (Mpa)	≥0.05Mpa
Motor power	2.2KW	3.0KW	3.0KW
Dimension (L*W*H) mm	600*1000*1600	600*1000*1600	600*1000*1600
Feeding capacity	450L/H	550L/H	600L/H
Machine weight	460kgs	490kgs	510kgs

User's site:
About Shenzhou
Shenzhou Separator has been at the forefront in the field of centrifugal separation technology for more than 50 years - which is why centrifuges from Shenzhou Separator perform this crucial separation function exceptionally well.
Today, Shenzhou Separator is the leader in mechanical separating technology in China. REEYES developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you ASAP.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.
