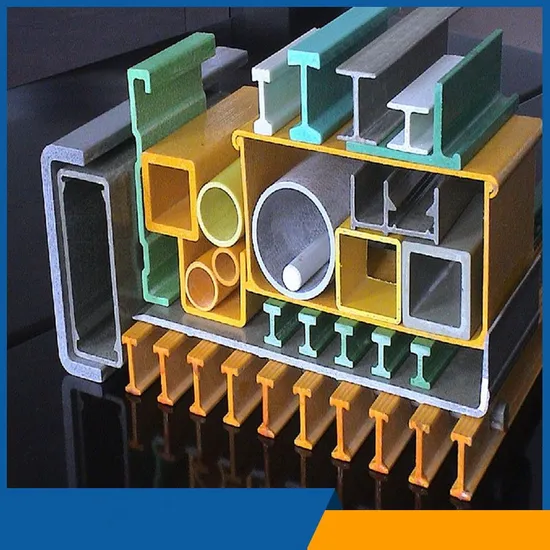

Nonstandard Strong Corrosion Resistance Pultrusion Profiles FRP (GH N004)

Product Description

Product descriptionNonstandard Strong Corrosion Resistance Pultrusion Profiles FRP(GH N004)
The basic components of glass steel flat steel for resin and glass fiber (including cloth, mat etc.), which is based on the fiber (including glass fiber, carbon fiber, organic fiber and other metal and non metal fiber) as reinforcing material, resin (mainly epoxy resin. Polyester resin, phenolic resin) as crosslinking agent, auxiliary and other supporting materials (mainly accessories: release agent, curing agent, catalyst, sealing mould agent, light stabilizer, UV clean water, gel coat) composites.
Product photos
Product technical parameters

Name	Specification	Name	Specification	Name	Specification
Rods	∮6	Rectangular bar	5*4	Trapezoidal pipe	35*25*3
	∮8		10*2		30*28*2.5
	∮9		10*4		45*40*2.5
	∮10		10*6		47*25*3
	∮11		10*10		25*15*5
	∮12		19*4		38*15*5
	∮14		19*6		58*15*5
	∮16		25*6		70*15*5
	∮18		30*2	Semicircle	8*6
	∮22		30*6
	∮25		35*15
	∮27		50*10
	∮30		50*20
Pipe	∮14*10	Channel	55*28*4	I stype	6*6*4
	∮16*11		63*25*4.5		8*6*3
	∮18*11		70*30*4.5		10*8*5
	∮22*18		80*30*3.5		12*10*5
	∮25*20		88*30*5		14*10*5
	∮30*25		110*40*4		15*10*5
	∮32*26		120*45*8		16*10*5
	∮50*42		160*45*9		18*14*7
	∮70*68	Angle bar	12*12*4		20*16*8
	∮76*70		18*18*6		22*20*10
Square pipe	25*25*3		25*25*8		25*14*7
	40*40*4		30*30*6	Bump plate	300*3
	50*50*4				500*3
	50*50*9			Curved plate	300*3
Rectangular tube	35*15*3				500*3
	47*27*3	R pipe	45*38*3		500*3
	48*31*3	Plum tube	∮36*25
	60*25*3	Oval tube	∮60*40	Flat sheet	1000*3
	60*30*3	D pipe	40*27*2.5
	70*25*3
	80*30*3

Features
1. Strong corrosion resistance
The doors and windows made of glass steel profiles are not only suitable for general residential houses, hotels, restaurants,but more for the coastal areas and the corrosive working environment of industrial plant use.
2. Adapt to the environmental
The production process of the extrusion profile is characterized by low noise, high efficiency, low power consumption, low pollution and so on, which is in line with the relevant environmental requirements of the country.
3. Glass fiber reinforced plastic (FRP) is well designed.
(1) According to the needs, flexible design of a variety of structural products, to meet the use requirements, you can make the product has a good overall.
(2) Can be fully selected materials to meet the performance of the product, such as: can be designed to rot resistant, resistant to instantaneous high temperature, the product has a particular direction of special high strength, dielectric, and so on.
4. Excellent technology
(1) According to the shape of the product, technical requirements, use and quantity to choose the flexible forming process.
(2) The technique is simple, can be formed at one time, and the economic effect is outstanding, especially for the product with complicated shape and not easy to be formed.
Application
Hot products

Company profile
Nanjing Guohao Environmental Technology Co., Ltd. is a company specialized in the production of composite materials, which integrates development, design, manufacture, installation and commissioning. Our company now has a large number of FRP machinery, mold manufacturing professionals, as well as advanced professional manufacturing equipment, the use of science and technology manufacturing production.
Our company products are widely used in chemical industry, plastics, petroleum, machinery, thermoelectricity and other industries. All the products recommended by our company are of high quality, so that you can have no worries.
