58mm Thermal Panel Printer,Embedded Printer TL80 With USB TTL RS232 Interface

Product Description

Product Description58mm Thermal Panel Printer TL80 With USB TTL RS232 Interface
Feature:

1.Streamlined appearance, beautiful and compact, comfortable to hold.

2.Easy paper loading, Easy to use;Classic triple key, easy to operate

3.Menu style operation, simple and easy to understand
4.Can provide DLL, SDK, application Demo, support customer application development.
System configuration
1.CPU: M4 32 - bit processor
2.Storage: DRAM/8192KB ROM/8192KB
3.Screen: 0.96inch OLED
4.Buttons: switch/set/paper
5.Battery: removable 7.4 V 2600 mah rechargeable lithium batteries, using high- performance batteries, long cycle life, battery state of charge is standby for 7 days.
6.Power adapter: AC100-240 V wide range input, load capacity is strong, the standard DC 5 v 1 a adapter (optional DC 5 v - 2 a adapter, charging more efficient)
7.Printer size (L * W * D) : 125 mm * 110 mm * 60 mm
8.Printer weight:350g(battery included, no label paper included)

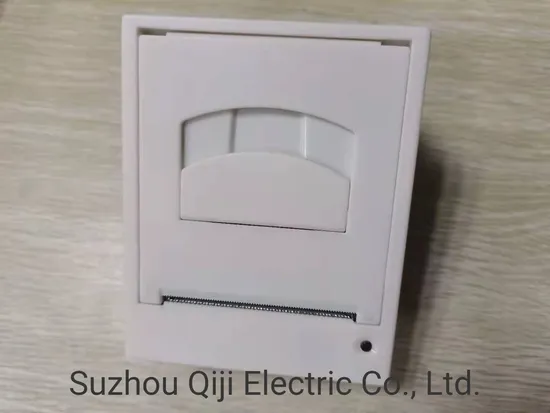

Detailed Photos58mm Thermal Panel Printer TL80 with USB TTL RS232 Interface
Product Parameters58mm Thermal Panel Printer TL80 with USB TTL RS232 Interface
1.Printing method:Thermal Dot Line Printing
2.Resolution: 576 / line
3.Effective Printing Width: 72 mm (support 80 mm wide common label thermal paper, can choose 12-80 - mm
4.Can accommodate 50 mm diameter paper roll
5.Printing speed: 90 mm/sec
6.Mechanism life cycle time:50km
7.Font Size: character 16x16/24x24/32x32 ASCII 8x16/9x24/12x24/16x16/16x32/18x16(It can be magnified 1~10 times both horizontally and vertically, and it can be rotated to print 10 degrees /90 degrees /270 degrees /360 degrees)
8.Instruction Set: TSC/ESC/CPCL instructions, download bitmaps, NV bitmap, a variety of one-dimensional bar code, QRCODE
9.Support System: Android/IOS/Windows.
Packaging & Shipping
Company Profile
FAQ

1.Can I get a sample order first to test the quality and compatibility?
Yes, usually we have samples in stock, customers can easily buy them for testing purpose.
2.What about delivery time?
For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity.
3.How about Payment terms?
For sample, Paypal, Western Union. For bulk order, T/T prepaid.
4.How about shipping methods?
DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way.
5.How about the warranty?
All items have 1 year guarantee.
6.How will you control the printer's quality?
We fully tested every product before shipping out, and also we have QC persons.
7.Can you make OEM or ODM for products?
Yes, OEM and ODM products are available.

---
