Automatic Platen Die Cutting Machine with Blanking and Stripping

Product Description

Automatic Platen Die cutting Machine with Stripping and Blanking
Video: https://youtu.be/wOEe17C5UAk

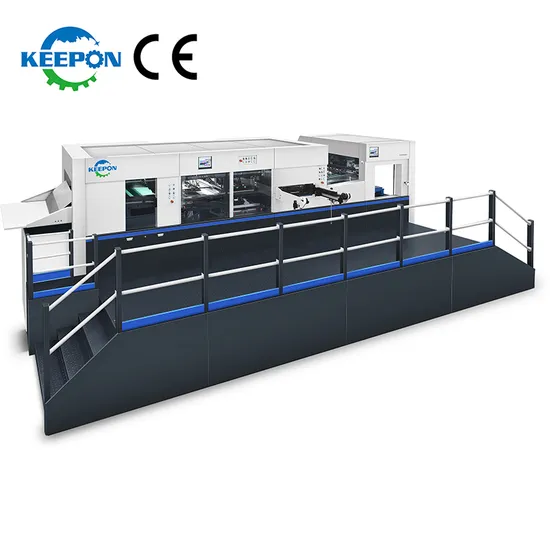

BHT-1060 Automatic Die Cutting Machine with Stripping and Blanking
The BHT series Automatic Die Cutting Machine with blanking (Lead Edge Feeder) manufactured by Keepon Machinery.It canefficiently complete the die cutting and blanking of products, as well as maintaining the highest precision and product quality. This machine is well equipped and almost suitable for all die cutting requirements of products. It has advantage such as blanking stacker, auto separation sheet insert, Non-stop sampling, advanced plate lock up, double sheet detector etc.
Features:
1. Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
2. Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.
3. The machine uses NSK imported original bearing.
4. The whole machine uses original parts imported from Germany Moeller, and Japanese OMRON, etc.
5. Key parts of teeth row are imported from Japan.
6. The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.
7. Equip with touch-screen operation interface in both Chinese and English.
8. Adopt Japanese SMC pneumatic components to ensure every pneumatic action performs accurately.
9. The front and side gauge adopts photoelectric system.
10. Each part of main machine is forced to adopts cycles lubrication system.
11. Siemens main motor ensures machine running stable.
Technical specifications:

Stock Range	Cardboard: 90-1000 gsm corrugated board: <=4 mm Carton acceptable warp: 2% across
Max. sheet size	1060x760 mm
Min. sheet size	400x350 mm
Max. die cutting size	1060x745 mm
Min gripper margin	9-17mm
Inner chase size	1080x770 mm
Min. width of double cuts	5 mm
Inner chase size	1650mm×1230mm
Max. die cutting pressure	300 ton
Designed max. mechanical speed	8000 s/h
Max. mechanical speed	7000s/h
Total power required	26Kw
Machine dimension	10298(L) x 5857(W) x 2657 mm
Machine net weight	22ton

Our Plant View:
Packing And Shipping:
Clients And Exhibition:
FAQ
1. Q: What is your delivery term?
A: FOB,CIF,CFR usually.

2.Q: What is your payment?
A: T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.

3.Q: What is your delivery time?
A: 30-50 days usually

4.Q: What is your warranty and other terms?
A: One year machine warranty,and whole life technical support. Spare parts are free for customer in 1 year.
We can send our engineer to your factory for machine installation and operator trainning if you need,
Customer pay the flight tickets,meals and hotel for our engineer.
Salary USD100.00 per day to our engineer.

---
