High-Precision CNC Special-Shaped Cylindrical Grinding Machine Mgk8320

Product Description

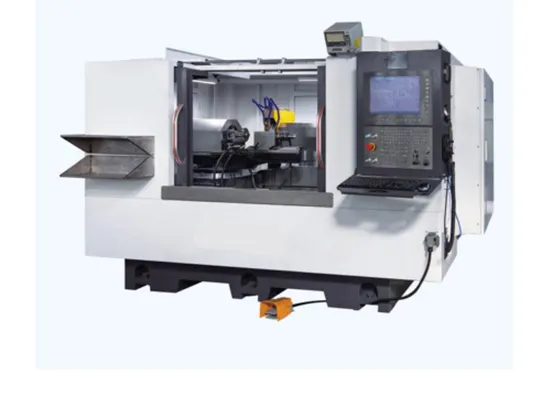

High-precision CNC special-shaped cylindrical grinding machine MGK8320
Main functions and features:
1.This machine is a three- axis linkage CNC high-speedgrinder, used for grinding eccentric shafts, cams and otherspecial-shaped outer contours. It has the characteristics ofhigh efficiency, high precision and simple operation.
2.The machine is controlled by the Japanese LYNUC CNCsystem. Three-axis linkage is controlled by digital AC servodrive to realize follow-up eccentric grinding. Grinding theouter circle and special- shaped outer circle contours in oneclamping. .
3.The CBN grinding wheel is directly driven by a staticpiezoelectric spindle, which has the characteristics of highrotationaccuracy,good accuracy retention, and strongrigidity. CBN grinding wheel linear speed above 80m/s
4.The headstock (C axis) is directly driven by the high-precision servo torque motor to drive the spindle, and isequipped with imported grating to ensure stable and reliablegrinding.
5.The grinding wheel dressing method is the front diamondroller, which realizes automatic dressing and automaticcompensation. It can dress the outer circle, end face andcircular arc
6.Crankshaft and camshaft CNC grinding software withindependent intellectual property rights.
Technical Parameters:

Model No.	MGK8320*300
Item No.
Specifications
Externalgrinding diameter	Ø5- Ø200mm
Maximum grinding length	250 center distance
Max.stroke of X-axis	370 mm
Max.stroke of Z-axis	270 mm
X-axis linear motor thrust (feed axis, workpiece headstock axis)	2200 Nm
X-axis servo motor power (feed axis,wheelstock axis)	1.5 kw
Workhead motor power(direct drive)	1500 Nm
Speedrangeofheadstock motor	0-100 rpm
Working head rotation angle (standard configuration is manual) rotary type	±15
Spindle speed of grinding wheel (standard configuration is electric spindle)	4000 rpm electric spindle
Wheel size	Ø400*40*203
Linear speed of grinding wheel	80 m/s
X-axis/Z-axis minimum feed unit	0.001 mm
X-axis/Z-axis minimum analytical unit	0.001 mm
Theminimumrotation angleof the headstock (special confiquration can add DD motor to automatically rotate)	0.001 mm
Totalcapacity of motor	18 kw
Roundness	1.5 μm
Cylindricity	3μm
Surface roughness	Ra 0.32μm

Main Accessories	Extra Accessories
Diamond roller dresser	Wheel Balancing stand
Wheel flange	Anti-collision and elimination of empty range device
Oil mist cleaner	Outer circle measuring instrument
CBN wheel	Automatic wheel balancer
leveling wedge
Wheel wrench
Magnetic paper belt filter water tank
Balance shaft
Special oil tank for spindle

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
