Multi Functional High-Precision Milling Machine

Product Description

Product Description

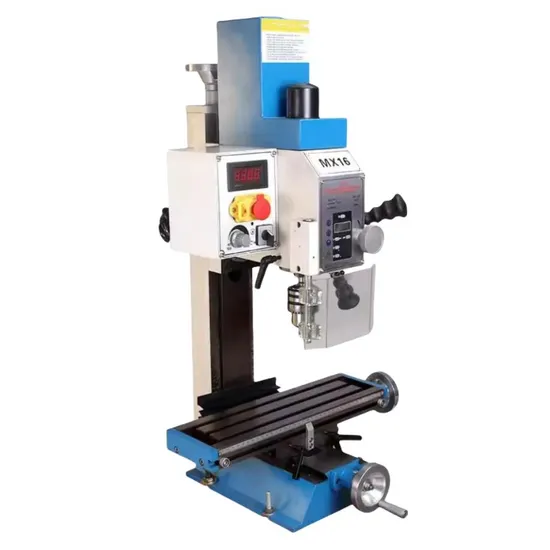

Mini Manual Metal Milling and Drilling Machine
Every Milling Machine is suitable for both rough & faster manual operation, accurate & slower turbine operation. Thanks for the features like, variable speed of spindle, digital speed or cutting depth readout, dedicated metric or imperial leadscrews and dials, 45°/90° left and right head tilt angles, Milling Machine is finally allowed to participate into a various of metalworking applications.
Detailed Photos

1.widely used, simple operation, and a wide range of processing 2.Guarantee the concentricity of the spindle is less than 0.009mm 3.Chuck runout accuracy of less than 0.05mm 4.Strong power, maintenance-free DC motor 5.After quenching and precision grinding of cast iron bed 6.High precision, quenching spindle
Product Parameters

Model	16	Maximum vertical milling capacity	16MM
Voltage	220V	Distance between chuck and table	210MM
Power	600W	Morse dimension of main shaft hole	MT2
The vertical axis stroke	220MM	Sleeve trip	52MM
The horizontal axis stroke	160MM	Manual lifting stroke of spindle	175MM
Main shaft trip	210MM	Spindle speed	50-2250RPM
Spindle box left and right rotation Angle	900	Table T slot width	10MM
Clamping diameter	16MM	Gross weight	85/80KG
Maximum bore diameter	16MM	The machine size	480*450*760MM
Maximum face milling capacity	52MM	Table size	400*120MM
