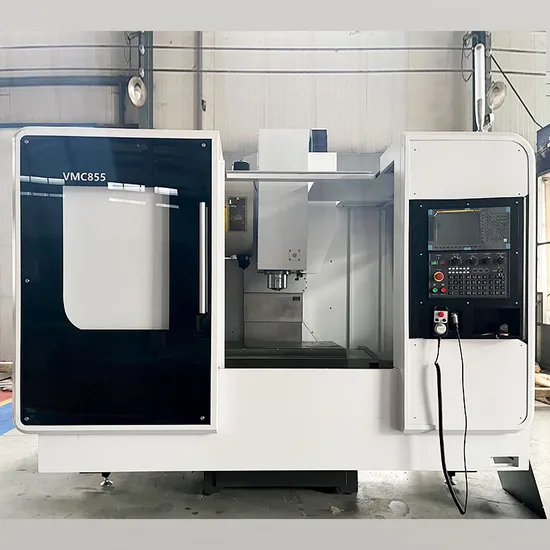

Vmc855 Maximum Stroke Metal Custom 3/4/5 Axis Vertical CNC Turning Milling Center Lathe Factory Direct Sales

Product Description

Product Description
Features of machining center •High quality resin sand cast iron
•Taiwan main axis •Taiwan ball screw and lock nut
•Taiwan booster cylinder •NSK bearing in Japan
•German R + W coupling •Automatic lubrication system
•Selection of chip conveyor Product Parameters

Specifications	Unit	VMC855	VMC845	VMC650	VMC550
X-axis travel	mm	800	950	650	550
Y-axis travel	mm	550	500	450	320
Z-axis travel	mm	550	500	500	450
Table size(L*degrees)	mm	1050*550	1000*450	900×410	800×260
Maximum table load	kg	600	450	400	200
T-slot(slot number*width*pitch)	mm	5*18*100	3*18*118	3*16*115	3*16*115
Spindle taper	/	BT40	BT40-120	BT40/120	BT40/120
Spindle power	KW	7.5-11	7.5-11	5.5-7.5	3.7-7.5
Maximum spindie speed	rpm	8000	8000	8000	8000
Rapid traverse(X/Y/Z)	m/min	48/48/36	24/24/24	24/24/24	24/24/24
Cutting feed	mm/min	1-8000	1-8000	1-8000	1-8000
Feed motor	NM	20/20/20	2010/10/15	2010/10/15	2006/6/15
Spindle nose to table	mm	130-660	120-650	100-600	80-530
Spindle center to columnsurface distance rail	mm	590	466	500	350
Magazine type	T	24	24	16	12
Positioning accuracy	mm	±0.0075	±0.008	±0.004	±0.004
Repeat accuracy	mm	±0.004	±0.004	±0.005	±0.005
Machine weight.(about)	T	6	4.2	4	3
Dimensions	m	2.8*2.4*2.8	2.6*2.2*2.6	2.5×2.2×2.5	2.2×2×2.3

Detailed Photos
KND 2100MC3i controller system
There are Fanuc 0i MF,Siemens 828D,GSK25i in optional
Taiwan CELLS 10000rpm spindle
Taiwan HIWN P grade linear guideways and leadscrews
JAPAN NSK bearing
24 pcs arm type toolmagazin
Processing Effect
Packaging & Shipping
At Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.

---
