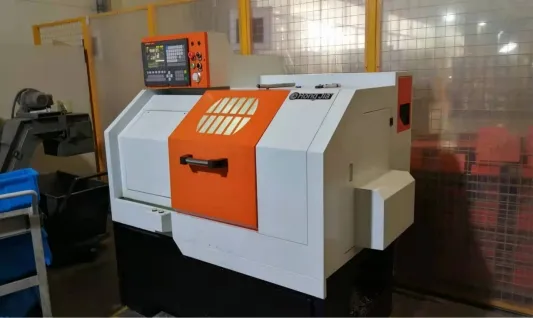

Zhenyue Small Turning, Drilling, and Boring Machine

Product Description

The horizontal turning center is not only good at traditional turning operations, but also integrates multiple processing functions such as drilling, boring, milling and tapping. One device can complete multiple processes, greatly reducing the number of workpiece transfers and improving production efficiency. The use of advanced servo control systems and precision guide rail design ensures that each processing can meet the micron-level accuracy requirements. Whether it is turning of complex contours or fine milling operations, it can be easily handled. The overall casting bed structure has undergone strict heat treatment to ensure that the machine tool can still maintain stability and accuracy under long-term heavy-load processing. This provides users with higher processing reliability and longer service life. Horizontal turning centers are widely used in aerospace, automobile manufacturing, mold manufacturing, precision machinery and other fields. NC6130 Parameter (Specification)

ltem	Content	NC6130
KT208 control system	Spindle motor power	3.7(continuous)/ 4(15minutes continuous)KW
	Basic spindle speed	625rpm
	Maximum spindle speed	3000rpm
	Spindle output torque	27Nm/15min
	X-axis servo motor power	1Kw
	Z-axis servo motor power	1Kw
Processing range	Maximum bed rotation	330mm
	Maximum length of machined workpiece	200mm
	Maximum workpiece diameter	180mm
	Maximum rod passing capacity of spindle	35mm
The X/Z axis moves	Maximum stroke
	X-axis	200 mm
	Z-axis	300 mm
	X/Z axis fast shift speed	10m/min
Gang knife	Number of tools	4
	Square handle tool holder specifications	16mm
	Round handle tool holder specifications	20mm
	Adjacent tool change time(T-T)	0.18/seconds
Tailstock	Tailstock travel	270mm
	Maximum holding part length	370mm
	Minimum holding part length	80mm
	Fast mowing speed
Chip removal	Coolant capacity	75L
	Coolant pressure	1.2bar
Machine size	Length*Width*Height	1580×1250x1580mm
	Weight	1000Kg

Technical and After-sales Service 1. English Technical files provided.
2. Machine tested before the delivery.
3. Technical support online service provided(Provide site test).
4. Consumable parts at reasonable price when replaced. Contact Information Contact Person: Jessica
Comapny: Ningbo Zhen Yue Machinery Co.,Ltd.
Address: No.39, Lane 158, Huangcheng West Road, Ningbo, China.
Zip Code: 315012 Remark:
1, The company reserves the right to revise all information (including word, photo) above.
2, Due to technology development, the machine design or specification would be changed without any prior notice.
3, If you need CE machine, please tell us in advance of order. Otherwise, we provide normal machine (not CE machine). CE machine is special and expensive.

---
