Three Dimensional Filament Winding Machine for FRP GRP Reducer, Elbow

Product Description

1. Company Profile:
Our company is a member of the Industry Association, and is a scientific and technological enterprise specializing in the development and production of FRP GRP GRE equipment. Since its establishment, the company has been committed to the research and development of FRP GRP GRE equipment, and has successfully produced the fifth generation winding equipment so far. The technical level occupies a leading position in the same industry in China. At present, the equipment produced by our company is sold all over the country. Has achieved a good reputation, we are willing to first-class quality, first-class after-sales service for the majority of users.
2. Technical parameter

S/N	Description	Technical parameter	Remarks
1	Diameter range of products to be made	DN300-DN600
2	Center height of winding machine	1500MM
3	Spindle power	7.5KW
4	Speed of spindle	0-35rpm
5	Swing arm rotation speed	25r/min
6	Swing arm rotation control mode	Swing oil-cylinder
7	Transverse stroke of swing arm	1500mm
8	Longitudinal stroke of swing arm	700mm
9	Swing arm movement control mode	Hydraulic motor+rack
10	Tail shaft telescoping mode	Electrical machinery
11	Tail shaft telescoping stroke	700mm
12	Rated working pressure of hydraulic system	14Mpa
13	Equipment power	11KW

3.Application and characteristics
1) Application: It is applied to the manufacture of fittings such as tees and elbows for FRP pipes.
2)Features: simple mechanical structure, convenient maintenance, swing arm controlled by hydraulic system, large working torque and adjustable speed, easy for operators to use.
4.Main structure principle

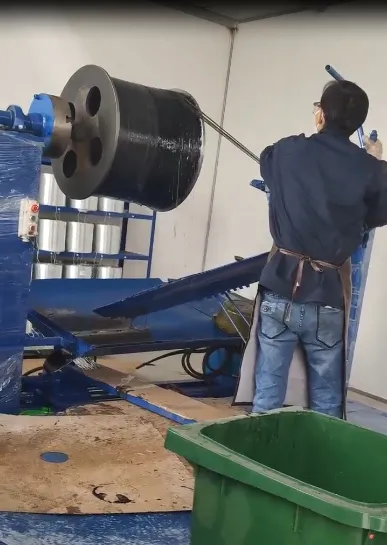

The machine head is driven by the motor reducer, the three-jaw chuck plates clamps the fitting mold, the tailstock passively supports the mold, and the product is produced through the swing of the swing arm.
5.Equipment configuration list

S/N	Description	Main parts	Technical parameter	Brand
1	Control system	Frequency changer/inverter	7.5KW	Powtran
		Electric box	600X800X300	Fangchen
		contactor	CJ20	CHINT
2	Transmission system	Reducer machine	XWD6-43-7.5W	Xieshun
		Ordinary motor	Y132M-4-B5-7.5KW	Mengniu
		Leather belt	B-triangle belt
3	Hydraulic pressure system	Hydraulic pump station	Volume 150L	Fangchen
		Hydraulic oil pump	CB-Fa10C-FL	Changsheng
		Swing cylinder	ZCFKD-63-180
		Hydro-motor	BMW-250	Hanergy
		Hydraulic reversing valve	DCF-30-HE/CR220	Jingchuang
4	Guide rails (bearings, etc.)	bearing	60220	Harbin
		Linear guide	SBR35	Zhejiang(Province)
5	Machine Frame	Base	16# channel steel	Fangchen
		Baseboard	Q235	Fangchen
		Spindle	45#	Fangchen
		Flange plate	Q235	Fangchen
		Resin Tank	Stainless steel	Fangchen
		Resin tank frame	Stainless steel	Fangchen
		Roving rack	Profile	Fangchen
		Left and right brackets	60X60 square tube	Fangchen
6	Protective cover	Piano-shaped shield	customized	Cangzhou

---
