Wuxi Metal Factory Complete Set Flat Single Axis Solar Tracker Solar Tracking System

Product Description

/Dual Axis Solar Tracking System/
· Higher efficiency, +10%-25% more energy
· No back shadows design for bi-facial solar modules
· Simple structure: Easy for installation and maintenance
· Less power consumption: Only about 3-5kWh/set/year
· High frame strength: Better wind-resistance performance
· Reliable technology, low failure rate, high tracking accuracy
· Smart control, self-positioning & self-correction, low O&M cost
· Rain wash mode: Effectively reduce your solar panels washing times
· Snow prevention mode: Effectively increase your power generation time
· Single row type or small linkage type: Btter terrain adaptability
· High polymer material for rotating parts: Free maintenance for 25 years
/Technical Date/

Item	Parameter
System Type	Single Row Type/2-5 Rows Linked
Control Mode	Time + GPS
Average Tracking Accuracy	0.1°-2.0°(adjustable)
Gear Motor	24V/1.5A
Output Torque	5000 N.M
Tracking Power Consumption(Per Set)	5kWh/year/set
Azimuth Angle Tracking Range	+-50°
Elevation Angle Tracking Range	50°
Back Tracking	Yes
Max. Wind Resistance in Horizontal	40 m/s
Max. Wind Resistance in Operation	24 m/s
Material	Hot-dipped galvanized>65μm
System Guarantee	3 years
Working Temperature	-40°C - +75°C
Technical Standard & Certificate	CE, TUV
Weight(Per Set)	200-400 KGS
Total Power(Per Set)	5kW-40kW

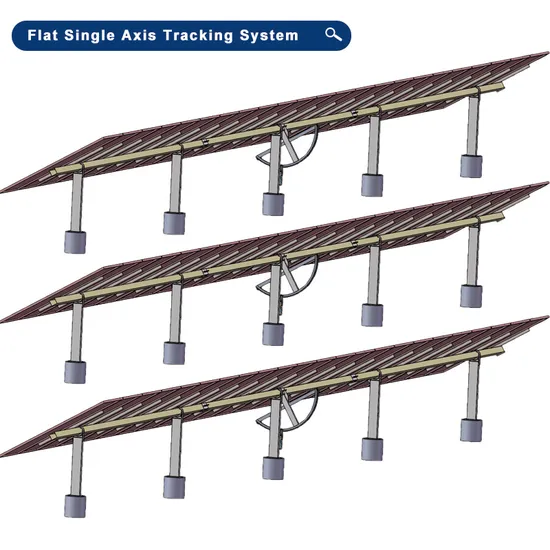

/Main Parts of Flat Single Axis Solar Tracking System/

Item	Description	Size(mm)
1	Driving Vertical Pole
2	Supporting
3	Plastic Bearing
4	Purlin Connections	Width: 34mm
5	Gear Ring
6	Chain Link
7	Spindle Connector
8	Prulin	Length: 1750mm
9	Center Beam	Length: 8792mm

---
