22pph Computer to Plate Platesetter Thermal CTP for Packaging Printing

Product Description

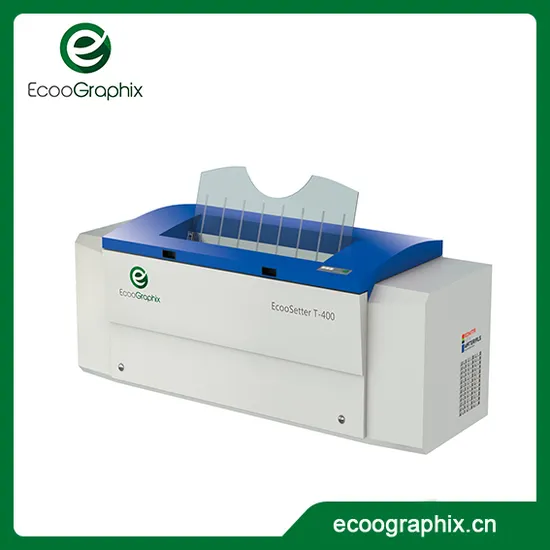

EcooGraphix Manual Thermal CTP Plate Making Machine 4up Series

Technical Specification - EcooSetter T-400S CTP
Model	EcooSetter T-400S CTP
Laser wavelength	830nm
Plate	830nm thermal plate
Exposing Method	External Drum
Imaging System	32-channel
Throughput	22 plates per hour, 800mmx660mm 2400dpi
Plate Size	Max. 800x660mm min. 400x300mm
Plate Thickness	0.15mm to 0.3mm
Resolutions	2,400dpi
Repeatability	±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB2.0
Weight	800KG
Size	1900×1200×1000mm(W×D×H)
Power Supply	Single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment	Recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

ECOO T Series Thermal CTP Specifications
Model	T-800F	T-800S	T-800E	T-400F	T-400S	T-400E
Exposing Method	External Drum
Imaging System	64-channel	48-channel	32-channel	48-channel	32-channel	24-channel
	Discrete 830nm laser diode
Throughput	28plates/hour	22plates/hour	16plates/hour	28plates/hour	22plates/hour	16plates/hour
	1030mm x 800mm, 2400dpi			800mm x 660mm ,2400dpi
Plate Sizes	Max.1130mm x 920mm Min.300mm x 260mm			Max.800mm x 660mm Min. 260mm x 300mm
Exposing Size	Max.1130mm x 884mm Min.260mm x 284mm			Max.800mm x 646mm Min. 260mm x 284mm
Media Type	positive 830nm thermal CTP plate
Plate Thickness	0.14mm to 0.30mm
Resolution	2400dpi
Repeatability	±5μm(continuous exposing for 4times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface	USB 2.0
Plate Loading	semi-automatic
Net Weight	900kg			800kg
Machine Size (WxLxH)mm	2530x1050x950			1900x1200x1000
Power Supply	single phase:220AC,+ 6%,- 10%, power Consumption:4KW
Operation Environment	recommended:21-25ºC, Max.18-26ºC, humidity:40-70%

Our Worldwide Partners:
FAQ 1. What are your main products?
Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP and CTCP, FlexoCTP, Processor, Offset Plates, inks, blankets, post-press packing equipment and so on.There are over 3000 sets of CTPs installed worldwide. Our partners in the USA, Canada, Mexico, Colombia, Turkey, Hungary, South Africa, and so on are very pleased with our technician support service and product performance.We also have five offset plate production lines producing the thermal CTP plate(single and double layers), positive CTCP plates(single and double layers), and chemistry-free CTP plate.You can get the prepress equipment and consumables all in one and no worry about the after-sales service from our company.2. Where is your factory?Our CTP machine factory is located in Hangzhou city, which is about 1.5 hours by train from Shanghai. You are warmly welcome to visit our factory!3. What is your warranty for the CTPs?Three years' Laser Head and main spare parts for the CTP, one year for the processor.4. What is the Lead Time?Usually 10-30 days, and we will try our best to meet your demands.5. Can you also supply the Workflow and RIP?Yes, we can provide the Workflow Brain New and RIP Compose V9.6. What about the Installation and after-sales technician support?Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24h.
Conclusion
EcooGraphix is proficient in supplying pre-press equipment and consumables.
What we offer:
1. Thermal CTP and CTCP equipment (all formats)
2. Thermal CTP and CTCP Plates (single layer, double layer plates)
3. Processors and autoloaders
4. Other graphics art supply
If you have any interests in EcooGraphix products or cooperation, please feel free to contact us.
Zoey Zhang HangZhou EcooGraphix Digital Technology Co., LTD. International Sale: Carson Lou Mobile +86-13397908167 ecoographix.en.made-in-china.com

---
